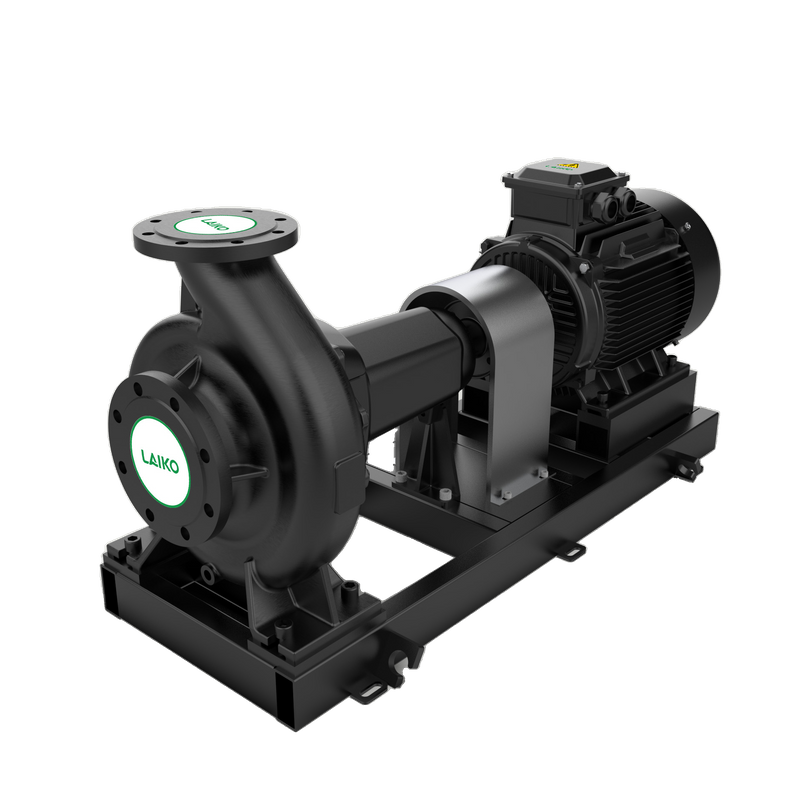

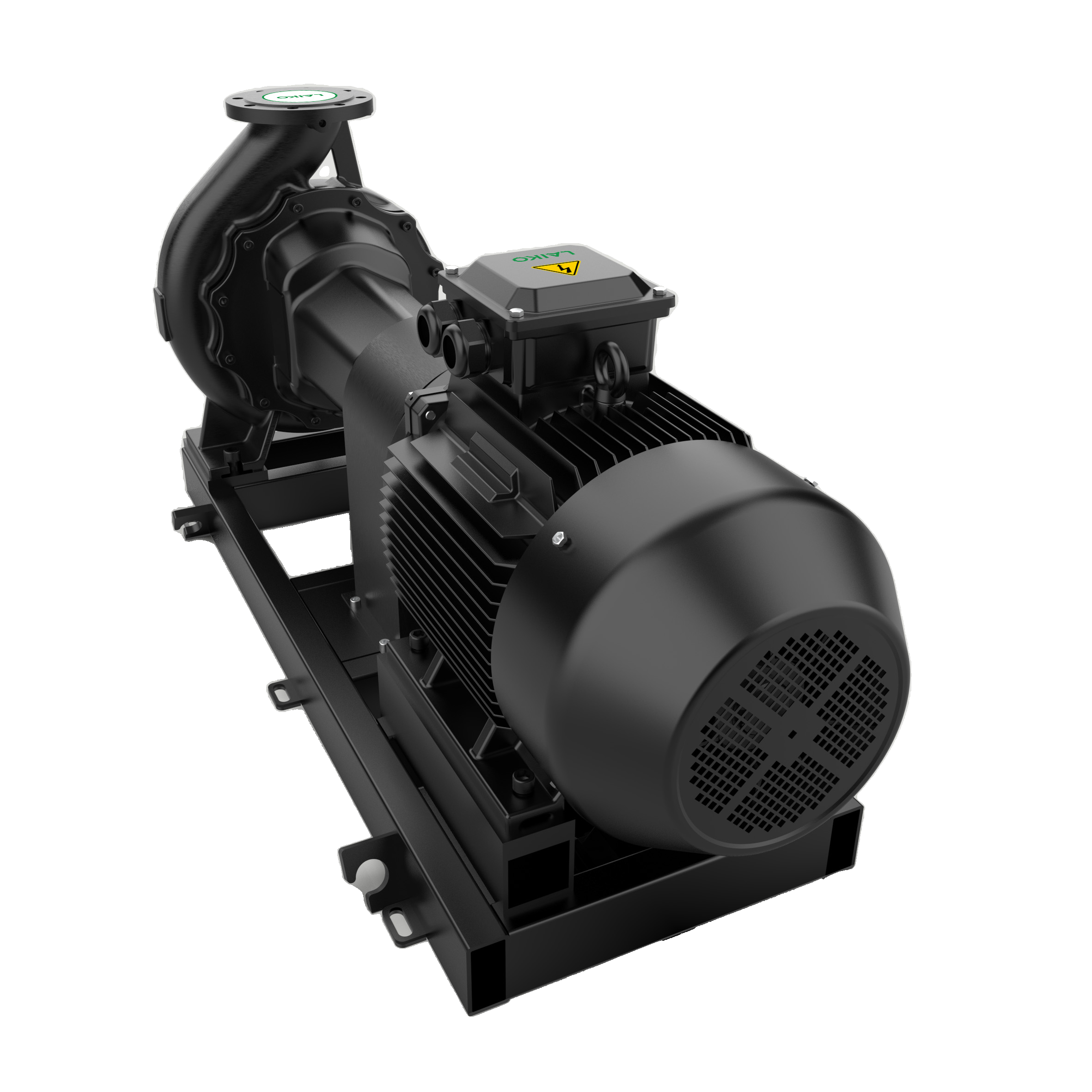

Horizontal Standard End-Suction Centrifugal Pump(ADX Suspended Type)

Name: Horizontal Standard End-Suction Centrifugal Pump(ADX Suspended Type)
Brand: LAIKO
Rating: 5.0 (91 reviews)


Availability:

Quantity:

Inquire Add to Basket

Model:
ADX
Brand:
LAIKO
Code:
LAIKO-ADX

The ADZ/ADX series is a non-self-priming, single-stage, single-suction, horizontal pump with axial water inlet and radial water outlet. The bottom of the pump body is ﬁxed to the base.The hydraulic design based on CFD makes it more eﬃcient than conventional products in the market.
The whole pump is designed in 3D and its strength is checked by FEA.The ADZ series motors feature an extended shaft design, which reduces the number of parts and increases reliability.The ADX series features a univer-sal modular design, allowing diﬀerent bearing housings to be selected according to the actual load of customers.
Standardly equipped with a YE3 motor, it ensures energy conservation and long-term economic operation.
The installation dimensions and performance comply with the DIN EN 733 standard. Equipped with standard wear-resistant mechanical seal.
Flange pressure PN 16 complies with DIN 2533 standards (PN25 is option-al).

APPLICATION FIELD:

Water Supply System
Heating and Air Conditioning System
Boosting Water Supply, Constant Pressure Water Supply Fire Sprinkler System
Irrigation and Livestock Use
Industrial Cooling
Heating Cycle System Industrial Conveying
Drain oﬀ System

TECHNICAL DATA:

Maximum ﬂow rate:1200m³/h
Maximum head:90m
Maximum working pressure:10bar
(16bar/25bar optional)
Medium temperature:0℃-120℃
Maximum ambient temperature:+40℃ Maximum altitude:1000m
import ﬂange:DN50-DN300
export ﬂange:DN32-DN250

Standard End-Suction Centrifugal Pump end-suction pump endsuction water supply pump endsuction industrial pump horizontal end suction centrifugal pump Drive end pump end suction pump Centrifugal pump highpressure centrifugal pump efficient centrifugal pump

Product Description

Structure Diagram

Performance Parameters

Catalog

▍Features

Standard End-Suction Centrifugal Pumps utilize advanced hydraulic design for a wide range of product models, featuring high efficiency, low noise, reliable operation and excellent cavitation resistance.
Our design meets the requirements of GB/T5656 and GB/T5657.
Suspended structure（ADX) features a rear-opening design, allowing for easy maintenance without needing to dismantle the suction and discharge pipelines when removing the pump cover and impeller. It can be equipped with diaphragm coupling, elastic dowel coupling, etc.

AWX(L) Standard End-Suction Centrifugal Pump

▍Model Description

▍Operating Conditions

Relative humidity: The pump is designed for installation in non-corrosive and non-explosive environments. The relative humidity shall not exceed 95%.
Ambient humidity and altitude: Environmental humidity and installation altitude significantly impact motor lifespan as they affect bearing and insulation system longevity.
Installation altitude is the installation position above sea level. If the environmental humidity exceeds the recommended maximum or if the installation height exceeds the recommended maximum altitude, the reduced air density will impair cooling efficiency. In such cases, the motor should not operate at full load. A motor with higher output power should be selected for these conditions.

▍Application Scenarios

It's suitable for clean, thin, non-corrosive, non-flammable, non-explosive liquids without solid particles or fibers.
Water supply systems
Heating and air Conditioning systems
Pressurized water supply, constant pressure water supply
Fire sprinkler systems
For irrigation and livestock
Industrial cooling and heating circulation systems
Industrial transport and discharge systems

▍Technical Parameters

Maximum flow rate: 1900 m³/h
Maximum head: 152 m
Maximum working pressure: 16 bar (25 bar optional)
Maximum power: 250 kW
The temperature of the medium: -20°C ~ 120°C (For temperatures above +85°C, a mechanical seal flushing option is available)
Maximum ambient temperature:+40°C;
Maximum altitude: 1000 meters
Suspended structure import caliber: DN50~DN350
Suspended structure export caliber: DN32~DN300

▍Product Comparison: AWX(L) vs Industry Alternatives

Feature	AWX(L) (Laiko)	Rondos Monoblock Pump (Link 1)	GIMM Fluid EA Series (Link 5)	WFSunny NFPA20 Pump (Link 2)
Standard Compliance	ISO 5199/ISO 2858	DIN 24255	EN 733	NFPA 20/UL
Material	GG25 Cast Iron/SS304 Optional	Cast Iron	Ductile Iron	Cast Iron + Bronze
Max Flow	2,200 m³/h	1,500 m³/h	1,800 m³/h	950 m³/h
Max Head	150m	120m	130m	85m
Temp Range	-20°C to +140°C	-15°C to +120°C	-10°C to +130°C	-10°C to +80°C
Energy Efficiency	MEI ≥0.7 (EU Tier II)	MEI 0.65	MEI 0.6	Not Certified
Smart Features	IoT Sensor Ports (Optional)	None	None	Basic Pressure Switch
Maintenance Cost	$12/year (Seal Replacement)	$18/year	$15/year	$25/year (Bronze Wear Parts)

▍Key Product Advantages

1. Unmatched Energy Efficiency

MEI Compliance: Achieves EU’s MEI ≥0.7 standard, reducing energy consumption by 18-22% compared to non-compliant models like Link 5’s EA Series.
Adaptive Impeller Design: Laser-trimmed impellers minimize recirculation losses, maintaining 87% efficiency even at partial loads.

2. Material Versatility

Corrosion Resistance: Optional 304/316L stainless steel construction (Link 6’s SS pumps cost 30% more for similar specs) handles seawater, chemicals (pH 2–12), and high-chlorine media.
Thermal Resilience: Operates in extreme temperatures (-20°C to +140°C), outperforming Link 3’s fire pumps limited to +80°C.

3. Industrial 4.0 Readiness

Smart Monitoring: Pre-installed ports for vibration/temperature sensors enable predictive maintenance (reduces downtime by 40% vs Link 7’s UL pumps).
Cloud Integration: Compatible with Modbus RTU/Profinet protocols for real-time fleet management.

4. Cost-Effective Maintenance

Quick-Seal Cartridge: Replace seals in 15 minutes without disassembling the housing (vs 45+ minutes for Link 4’s monoblock pumps).
Universal Mounting: ANSI/ISO interchangeable design allows retrofitting into existing systems, saving $500+/unit in installation costs.

▍Maintenance Tips for Optimal Performance

1. Daily Operations

Monitor motor current: Deviations >10% from baseline indicate impeller wear or clogging.
Check baseplate bolts (torque to 160 Nm) to prevent vibration-induced misalignment.

2. Monthly Inspections

Lubricate bearings with ISO VG 68 oil (avoid over-greasing to prevent overheating).
Clean strainers to maintain flow rates >95% of design specs.

3. Annual Overhaul

Replace mechanical seals if leakage exceeds 10 drops/minute.
Rebalance impellers to ISO 1940 G6.3 standards after 8,000 operating hours.

Pro Tip: Use Laiko’s Performance Analytics App (included with IoT-enabled models) to schedule maintenance based on actual wear data.

▍FAQs: Addressing Critical Buyer Concerns

Q1: Can the AWX(L) handle abrasive slurries?

A: Yes, with optional hardened stainless steel impellers (HRC 55) and tungsten carbide seals. Not recommended for >15% solids concentration.

Q2: What certifications support fire safety compliance?

A: AWX(L)-F variant meets NFPA 20/UL standards (Link 3/7 require +$1,200 modifications for equivalent certification).

Q3: Is variable speed control supported?

A: Yes. AWX(L) works seamlessly with VFDs (0–100% speed adjustment) to save 25–50% energy in partial-load scenarios.

Q4: How does altitude affect performance?

A: At 1,500m+, motor derating is required. Laiko provides altitude-compensated models (up to 3,000m) with oversized cooling fans.

Q5: What’s the lead time for custom configurations?

A: Standard units ship in 7 days. Stainless steel/explosion-proof versions require 14 days (30% faster than Link 5’s EA Series).

▍Industry Trends & Strategic Positioning

1. Water-Energy Nexus Optimization

With global industries prioritizing SDG 6 (Clean Water) and SDG 7 (Affordable Energy), the AWX(L)’s MEI compliance positions it as a leader in ESG-compliant projects. Its 22% energy savings over traditional pumps (Link 4) align with EU’s 2030 Climate Target Plan.

2. Smart Manufacturing Integration

Laiko’s Pump Health Dashboard (launching Q1 2024) will use AI to predict bearing failures 300 hours in advance, reducing unplanned downtime by 60%.

3. Circular Economy Compatibility

Remanufacturing Program: Return end-of-life AWX(L) units for 30% credit toward new purchases (unique in the industry vs Link 2/8).
95% Recyclability: Cast iron/stainless steel construction supports zero-waste initiatives.

▍Why Choose Laiko’s AWX(L) Series?

Proven Reliability: 34+ years of Dayuan Group engineering heritage.
Global Certifications: CE, ISO 9001, FM, UL, and NSF/ANSI 61 for potable water.
24/7 Support: On-site technical assistance within 72 hours worldwide.

▍Structure Diagram

微信图片_20251112161210_487_295

NO.	Parts	Materials
NO.	Parts	Standard Configuration	Optional Configuration
1c	Motor	YE3 high-efficiency motor	Optional
1e	Bearing	Maintenance-free bearing	SKF,NSK,etc.
2	Pump shaft	45#	2Cr13
3	Mechanical seal	Standard graphite and silicon carbide + EPDM	Optional
4	Impeller	HT200	QT450,304,etc.
5	Pump body	HT250	QT450,304,etc.
6	O-ring	Ethylene-propylene rubber(EPR)	Fluororubber,etc.
7	Pump cover	HT250	QT450,304,etc.
8c	Motor bracket	HT250	QT450,304,etc.
8e	Bearing box	HT250	/
9e	Bracket foot	45#	/

▍Performance Parameters

50Hz,2-Pole,Rated Speed:2900rpm

SN.	Model	Rate Flow (m³/h)	Rate Head (m)	Power (kw)	Speed (r/min)	NPSH(m)

1	ADX40-32-125	4.4	21.5	1.1	2900	2
		6.3	20
		8.2	18
2	ADX40-32-125A	3.9	17.5	0.75	2900	2
		5.5	16
		7.2	14
3	ADX40-32-160	4.4	37.5	3	2900	2
		6.3	36
		8.2	34
4	ADX40-32-160A	4.1	33.5	2.2	2900	2
		5.9	32
		7.6	30
5	ADX40-32-160B	3.9	31.5	1.5	2900	2
		5.5	28
		7.2	26
6	ADX50-32-125	8.8	21.5	1.5	2900	2.2
		12.5	20
		16.3	18
7	ADX50-32-125A	8.1	17.5	1.1	2900	2.2
		11.5	16
		15	14
8	ADX50-32-160	8.8	37.5	4	2900	2.2
		12.5	36
		16.3	34
9	ADX50-32-160A	8.1	33.5	3	2900	2.2
		11.5	32
		15	30
10	ADX50-32-160B	7.4	29.5	2.2	2900	2.2
		10.5	28
		13.7	26
11	ADX50-32-200	17.5	61.2	7.5	2900	2.2
		25	56
		32.5	49
12	ADX50-32-200A	16.5	55.1	7.5	2900	2.4
		23.5	50
		30.6	40.5
13	ADX50-32-200B	15.1	48.5	5.5	2900	2.4
		21.5	44
		28	35.2
14	ADX65-50-125	17.5	21.5	3	2900	3
		25	20
		32.5	18
15	ADX65-50-125A	16.5	17.5	2.2	2900	3
		23.5	16
		30.6	14
16	ADX65-50-160	35	39	11	2900	3
		50	36
		65	32
17	ADX65-50-160A	31.5	35	7.5	2900	3.2
		45	32
		58.5	26.5
18	ADX65-50-160B	29.8	29	5.5	2900	3.2
		42.5	26
		55.3	20.5
19	ADX65-40-200	35	62	15	2900	3
		50	56
		65	49
20	ADX65-40-200A	31.5	51.5	11	2900	3.2
		45	47
		58.5	37.6
21	ADX65-40-200B	29.8	41.8	7.5	2900	3.2
		42.5	38
		55.3	30.6
22	ADX65-40-250	35	95.5	22	2900	3
		50	88
		65	80
23	ADX65-40-250A	31.5	80.3	18.5	2900	3.2
		45	75
		58.5	58.4
24	ADX65-40-250B	29.8	67.8	15	2900	3.2
		42.5	62
		55.3	50.4
25	ADX65-40-315	35	151	45	2900	3
		50	140
		65	128
26	ADX65-40-315A	31.5	138	37	2900	3.2
		45	130
		58.5	119
27	ADX65-40-315B	29.8	127	30	2900	3.2
		42.5	120
		55.3	108
28	ADX80-65-160	70	39.5	15	2900	4.2
		100	36
		130	31
29	ADX80-65-160A	66.5	35.5	15	2900	4.5
		95	32
		123	26
30	ADX80-65-160B	63	31.5	11	2900	4.5
		90	28
		117	22
31	ADX80-50-200	70	61	30	2900	4.2
		100	56
		130	50.5
32	ADX80-50-200A	66.5	55	22	2900	4.5
		95	50
		123	44.5
33	ADX80-50-200B	63	50.5	18.5	2900	4.5
		90	45
		117	39.5
34	ADX80-50-250	70	95	45	2900	4.2
		100	88
		130	81
35	ADX80-50-250A	66.5	87	37	2900	4.5
		95	80
		123	72.5
36	ADX80-50-250B	63	76.5	30	2900	4.5
		90	70
		117	62
37	ADX80-50-315	70	151	75	2900	4.2
		100	140
		130	128
38	ADX80-50-315A	66.5	131	55	2900	4.5
		95	120
		123	105
39	ADX80-50-315B	63	109.5	45	2900	4.5
		90	100
		117	84.5
40	ADX100-80-160	112	40.5	22	2900	4.5
		160	36
		192	31
41	ADX100-80-160A	105	34.5	18.5	2900	4.8
		150	30
		180	25
42	ADX100-80-160B	98	29.5	15	2900	4.8
		140	25
		168	20.5
43	ADX100-65-200	112	61	37	2900	4.8
		160	56
		192	50.5
44	ADX100-65-200A	105	52.8	30	2900	5
		150	48
		180	39.5
45	ADX100-65-200B	98	44.5	22	2900	5
		140	40
		168	32.5
46	ADX100-65-250	112	95	75	2900	4.8
		160	88
		192	81
47	ADX100-65-250A	105	87	55	2900	5
		150	80
		180	72
48	ADX100-65-250B	98	82	45	2900	5
		140	75
		168	65
49	ADX100-65-315	112	151	110	2900	4.8
		160	140
		192	128
50	ADX100-65-315A	105	140	90	2900	5
		150	130
		180	118
51	ADX100-65-315B	98	130	75	2900	5
		140	120
		168	108
52	ADX125-100-200	210	63	75	2900	7
		300	56
		360	49
53	ADX125-100-200A	182	54.9	55	2900	7
		260	50
		312	41.2
54	ADX125-100-200B	154	49.5	45	2900	7
		220	45
		264	37.5
55	ADX125-100-250	210	88	90	2900	7
		300	80
		360	71
56	ADX125-100-250A	192	82.5	75	2900	7
		275	75
		358	65.8
57	ADX125-100-250B	175	76.5	55	2900	7
		250	70
		325	62
58	ADX125-100-250S	154	88	75	2900	7
		220	80
		264	71
59	ADX125-100-250SA	140	78	55	2900	7
		200	70
		240	61
60	ADX125-100-315	210	142.5	160	2900	7
		300	130
		360	108.5
61	ADX125-100-315A	192	126.7	132	2900	7
		275	115
		358	92.7
62	ADX125-100-315B	175	115.6	110	2900	7
		250	105
		325	86.2
63	ADX125-100-315S	154	143	132	2900	7
		220	130
		264	108
64	ADX125-100-315SA	140	126	110	2900	7
		200	115

50Hz,4-Pole,Rated Speed:1450rpm

SN.	Model	Rate Flow (m³/h)	Rate Head (m)	Power (kw)	Speed (r/min)	NPSH(m)

1	ADX50-32-200	8.8	15.1	1.1	1450	1.5
		12.5	14
		16.3	12.1
2	ADX50-32-200A	8	13.5	0.75	1450	1.5
		11.5	12
		15	10.2
3	ADX50-32-200B	7.5	12.5	0.75	1450	1.5
		10.5	11
		13.7	9.5
4	ADX65-50-160	17.5	9.9	1.1	1450	1.5
		25	9
		32.5	8
5	ADX65-50-160A	16.4	7.8	1.1	1450	1.8
		23.5	7
		30.5	6
6	ADX65-50-160B	13	6.2	0.75	1450	1.8
		21.5	5.5
		28	4.5
7	ADX65-40-200	17.5	15.4	2.2	1450	1.5
		25	14
		32.5	12.4
8	ADX65-40-200A	16.4	13.2	1.5	1450	1.8
		23.5	12
		30.5	10.5
9	ADX65-40-200B	13	11.1	1.1	1450	1.8
		21.5	10
		28	8.6
10	ADX65-40-250	17.5	23.5	3	1450	1.6
		25	22
		32.5	20
11	ADX65-40-250A	14	20.1	2.2	1450	1.8
		23.5	18
		30.5	15.9
12	ADX65-40-250B	13	17.5	2.2	1450	1.8
		21.5	16
		28	14.3
13	ADX65-40-315	17.5	37.5	5.5	1450	1.6
		25	36
		32.5	32
14	ADX65-40-315A	16.4	33.5	5.5	1450	1.8
		23.5	32
		30.5	28.2
15	ADX65-40-315B	13	29.5	4	1450	1.8
		21.5	28
		28	24.2
16	ADX80-65-160	35	9.8	2.2	1450	2
		50	9
		65	8
17	ADX80-65-160A	32.5	7.7	1.5	1450	2.2
		46.5	7
		60.5	6.1
18	ADX80-65-160B	31	6.2	1.1	1450	2.2
		44.5	5.5
		58	4.3
19	ADX80-50-200	35	15	3	1450	2
		50	14
		65	12.2
20	ADX80-50-200A	32.5	13	3	1450	2.2
		46.5	12
		60.5	10
21	ADX80-50-200B	31	11	2.2	1450	2.2
		44.5	10
		58	8.6
22	ADX80-50-250	35	23.5	5.5	1450	2
		50	22
		65	20.2
23	ADX80-50-250A	32.5	21.8	5.5	1450	2.2
		46.5	20
		60.5	17.5
24	ADX80-50-250B	31	19.6	4	1450	2.2
		44.5	18
		58	15.8
25	ADX80-50-315	35	37.2	11	1450	2
		50	35
		65	32
26	ADX80-50-315A	32.5	32.5	7.5	1450	2.2
		46.5	30
		60.5	27.2
27	ADX80-50-315B	31	26.2	5.5	1450	2.2
		44.5	24
		58	21.4
28	ADX100-80-160	56	9.9	3	1450	2.3
		80	9
		104	7.8
29	ADX100-80-160A	53.2	8.5	3	1450	2.5
		76	7.5
		98.8	6.3
30	ADX100-80-160B	50.8	6.9	2.2	1450	2.5
		72.5	6
		94.3	4.8
31	ADX100-65-200	56	15.2	5.5	1450	2.3
		80	14
		104	12.2
32	ADX100-65-200A	53.2	13.2	4	1450	2.5
		76	12
		98.8	10.1
33	ADX100-65-200B	50.8	11.2	3	1450	2.5
		72.5	10
		94.3	7.8
34	ADX100-65-250	56	23.8	7.5	1450	2.3
		80	22
		104	20.2
35	ADX100-65-250A	53.2	21.7	7.5	1450	2.5
		76	20
		98.8	17.5
36	ADX100-65-250B	50.8	17.5	5.5	1450	2.5
		72.5	16
		94.3	13.5
37	ADX100-65-315	56	37	15	1450	2.3
		80	35
		104	32
38	ADX100-65-315A	53.2	32.5	11	1450	2.5
		76	30
		98.8	25.5
39	ADX100-65-315B	50.8	25.5	7.5	1450	2.5
		72.5	23
		94.3	18.5
40	ADX125-100-200	105	15.7	11	1450	2.5
		150	14
		195	11.6
41	ADX125-100-200A	98	13.7	7.5	1450	2.8
		140	12
		182	9.6
42	ADX125-100-200B	91	11.6	5.5	1450	2.8
		130	10
		169	8
43	ADX125-100-250	105	24.5	15	1450	2.5
		150	22
		195	18.8
44	ADX125-100-250A	98	22.5	15	1450	2.8
		140	20
		182	16.5
45	ADX125-100-250B	91	19.5	11	1450	2.8
		130	18
		169	14.8
46	ADX125-100-315	105	38.2	22	1450	2.5
		150	35
		195	30.5
47	ADX125-100-315A	98	34.2	18.5	1450	2.8
		140	30
		182	25.5
48	ADX125-100-315B	91	28.5	15	1450	2.8
		130	25
		169	20.5
49	ADX125-100-315S	80	38.2	18.5	1450	3
		115	35
		150	30.5
50	ADX125-100-315SA	77	36.2	15	1450	3
		100	32
		130	27.5
51	ADX125-100-400	105	59.5	37	1450	2.5
		150	56
		195	48.5
52	ADX125-100-400A	98	51.5	30	1450	2.8
		140	48
		182	40.5
53	ADX125-100-400B	91	41.5	22	1450	2.8
		130	38
		169	30.5
54	ADX125-100-400S	80	59.5	30	1450	3
		115	56
		150	48.5
55	ADX125-100-400SA	77	53.5	22	1450	3
		100	50
		130	42.5
56	ADX150-125-250	210	24.8	30	1450	3.2
		300	22
		390	19
57	ADX150-125-250A	192	22.8	22	1450	3.5
		275	20
		358	16.4
58	ADX150-125-250B	175	18.5	18.5	1450	3.5
		250	16
		325	12.5
59	ADX150-125-315	210	38.5	45	1450	3.2
		300	35
		390	30.5
60	ADX150-125-315A	192	33.5	37	1450	3.5
		275	30
		358	25.5
61	ADX150-125-315B	175	28.5	30	1450	3.5
		250	25
		325	20.5
62	ADX150-125-315S	150	38.5	37	1450	3.5
		220	35
		285	30.5
63	ADX150-125-315SA	140	35.5	30	1450	3.5
		200	32
		260	27.5
64	ADX150-125-400	210	62.6	75	1450	3.2
		300	56
		390	50.5
65	ADX150-125-400A	192	56.6	55	1450	3.5
		275	50
		358	44.2
66	ADX150-125-400B	175	48.5	45	1450	3.5
		250	42
		325	38.6
67	ADX150-125-400S	150	62.6	55	1450	3.8
		220	56
		285	49.5
68	ADX150-125-400SA	140	50.2	45	1450	3.8
		200	50
		260	42.5
69	ADX200-150-250	350	23.5	45	1450	5.5
		500	20
		600	15
70	ADX200-150-250A	315	21.5	37	1450	5.8
		450	18
		540	13
71	ADX200-150-315	350	39.4	75	1450	5.5
		500	35
		600	30.2
72	ADX200-150-315A	315	33.5	55	1450	5.8
		450	30
		540	24.8
73	ADX200-150-315B	280	27.6	45	1450	5.8
		400	25
		480	20.3
74	ADX200-150-315S	280	39	55	1450	5.8
		400	35
		480	30
75	ADX200-150-315SA	260	33.5	45	1450	5.8
		375	30
		450	25
76	ADX200-150-400	350	61	110	1450	5.5
		500	56
		600	49.5
77	ADX200-150-400A	315	55	90	1450	5.8
		450	50
		540	43.5
78	ADX200-150-400B	280	50.5	75	1450	5.8
		400	45
		480	38.5
79	ADX200-150-400S	280	60	90	1450	5.8
		400	56
		480	50.5
80	ADX200-150-400SA	260	55	75	1450	5.8
		375	50
		450	43.5
81	ADX200-150-500	350	91.5	200	1450	5.3
		500	85
		600	76
82	ADX200-150-500A	315	86	160	1450	5.3
		450	80
		540	71
83	ADX200-150-500B	280	81	132	1450	5.3
		400	75
		480	67
84	ADX250-200-250	500	24.5	55	1450	6.5
		720	20
		860	17
85	ADX250-200-250A	420	19.5	45	1450	6.5
		600	17
		720	14
86	ADX250-200-315	525	38	90	1450	6.5
		750	32
		900	30
87	ADX250-200-315A	455	33	75	1450	7
		650	30
		780	25
88	ADX250-200-315B	400	28	55	1450	7
		580	25
		700	20
89	ADX250-200-400	525	60	160	1450	7
		750	55
		900	49
90	ADX250-200-400A	455	55	132	1450	7
		650	50
		780	45
91	ADX250-200-400B	420	50	110	1450	7
		600	45
		720	40
92	ADX300-250-250	560	24.5	75	1450	8.5
		800	20
		960	15.5
93	ADX300-250-250A	500	21.5	55	1450	8.5
		720	17
		860	14
94	ADX300-250-315	700	36.5	110	1450	8.2
		1000	32
		1200	27.5
95	ADX300-250-315A	630	32.5	90	1450	8.5
		900	28
		1080	23.5
96	ADX300-250-315B	560	29.5	75	1450	8.5
		800	25
		960	20.5
97	ADX300-250-400	700	61	200	1450	8.2
		1000	55
		1200	50.5
98	ADX300-250-400A	630	56.6	160	1450	8.5
		900	50
		1080	44.2
99	ADX300-250-400B	560	50.5	132	1450	8.5
		800	45
		960	38.5
100	ADX300-250-400C	525	45.5	110	1450	8.5
		750	40
		900	33.5

50Hz,2-Pole,Rated Speed:2900rpm

SN.	Model	Rate Flow (m³/h)	Rate Head (m)	Power (kw)	Speed (r/min)	NPSH(m)

1	ADZ40-32-125	4.4	21.5	1.1	2900	2
		6.3	20
		8.2	18
2	ADZ40-32-125A	3.9	17.5	0.75	2900	2
		5.5	16
		7.2	14
3	ADZ40-32-160	4.4	37.5	3	2900	2
		6.3	36
		8.2	34
4	ADZ40-32-160A	4.1	33.5	2.2	2900	2
		5.9	32
		7.6	30
5	ADZ40-32-160B	3.9	31.5	1.5	2900	2
		5.5	28
		7.2	26
6	ADZ50-32-125	8.8	21.5	1.5	2900	2.2
		12.5	20
		16.3	18
7	ADZ50-32-125A	8.1	17.5	1.1	2900	2.2
		11.5	16
		15	14
8	ADZ50-32-160	8.8	37.5	4	2900	2.2
		12.5	36
		16.3	34
9	ADZ50-32-160A	8.1	33.5	3	2900	2.2
		11.5	32
		15	30
10	ADZ50-32-160B	7.4	29.5	2.2	2900	2.2
		10.5	28
		13.7	26
11	ADZ50-32-200	17.5	61.2	7.5	2900	2.2
		25	56
		32.5	49
12	ADZ50-32-200A	16.5	55.1	7.5	2900	2.4
		23.5	50
		30.6	40.5
13	ADZ50-32-200B	15.1	48.5	5.5	2900	2.4
		21.5	44
		28	35.2
14	ADZ65-50-125	17.5	21.5	3	2900	3
		25	20
		32.5	18
15	ADZ65-50-125A	16.5	17.5	2.2	2900	3
		23.5	16
		30.6	14
16	ADZ65-50-160	35	39	11	2900	3
		50	36
		65	32
17	ADZ65-50-160A	31.5	35	7.5	2900	3.2
		45	32
		58.5	26.5
18	ADZ65-50-160B	29.8	29	5.5	2900	3.2
		42.5	26
		55.3	20.5
19	ADZ65-40-200	35	62	15	2900	3
		50	56
		65	49
20	ADZ65-40-200A	31.5	51.5	11	2900	3.2
		45	47
		58.5	37.6
21	ADZ65-40-200B	29.8	41.8	7.5	2900	3.2
		42.5	38
		55.3	30.6
22	ADZ65 40-250	35	95.5	22	2900	3
		50	88
		65	80
23	ADZ65 40-250A	31.5	80.3	18.5	2900	3.2
		45	75
		58.5	58.4
24	ADZ65-40-250B	29.8	67.8	15	2900	3.2
		42.5	62
		55.3	50.4
25	ADZ65 40-315	35	151	45	2900	3
		50	140
		65	128
26	ADZ65 40-315A	31.5	138	37	2900	3.2
		45	130
		58.5	119
27	ADZ65-40-315B	29.8	127	30	2900	3.2
		42.5	120
		55.3	108
28	ADZ80-65-160	70	39.5	15	2900	4.2
		100	36
		130	31
29	ADZ80-65-160A	66.5	35.5	15	2900	4.5
		95	32
		123	26
30	ADZ80-65-160B	63	31.5	11	2900	4.5
		90	28
		117	22
31	ADZ80-50-200	70	61	30	2900	4.2
		100	56
		130	50.5
32	ADZ80-50-200A	66.5	55	22	2900	4.5
		95	50
		123	44.5
33	ADZ80-50-200B	63	50.5	18.5	2900	4.5
		90	45
		117	39.5
34	ADZ80-50-250	70	95	45	2900	4.2
		100	88
		130	81
35	ADZ80-50-250A	66.5	87	37	2900	4.5
		95	80
		123	72.5
36	ADZ80-50-250B	63	76.5	30	2900	4.5
		90	70
		117	62
37	ADZ80-50-315	70	151	75	2900	4.2
		100	140
		130	128
38	ADZ80-50-315A	66.5	131	55	2900	4.5
		95	120
		123	105
39	ADZ80-50-315B	63	109.5	45	2900	4.5
		90	100
		117	84.5
40	ADZ100-80-160	112	40.5	22	2900	4.5
		160	36
		192	31
41	ADZ100-80-160A	105	34.5	18.5	2900	4.8
		150	30
		180	25
42	ADZ100-80-160B	98	29.5	15	2900	4.8
		140	25
		168	20.5
43	ADZ100-65-200	112	61	37	2900	4.8
		160	56
		192	50.5
44	ADZ100-65-200A	105	52.8	30	2900	5
		150	48
		180	39.5
45	ADZ100-65-200B	98	44.5	22	2900	5
		140	40
		168	32.5
46	ADZ100-65-250	112	95	75	2900	4.8
		160	88
		192	81
47	ADZ100-65-250A	105	87	55	2900	5
		150	80
		180	72
48	ADZ100-65-250B	98	82	45	2900	5
		140	75
		168	65
49	ADZ100-65-315	112	151	110	2900	4.8
		160	140
		192	128
50	ADZ100-65-315A	105	140	90	2900	5
		150	130
		180	118
51	ADZ100-65-315B	98	130	75	2900	5
		140	120
		168	108
52	ADZ125-100-200	210	63	75	2900	8.5
		300	56
		360	49
53	ADZ125-100-200A	182	54.9	55	2900	8.6
		260	50
		312	41.2
54	ADZ125-100-200B	154	49.5	45	2900	8.6
		220	45
		264	37.5
55	ADZ125-100-250	210	88	90	2900	8.5
		300	80
		360	71
56	ADZ125-100-250A	192	82.5	75	2900	8.6
		275	75
		358	65.8
57	ADZ125-100-250B	175	76.5	55	2900	8.6
		250	70
		325	62
58	ADZ125-100-250S	154	88	75	2900	8.6
		220	80
		264	71
59	ADZ125-100- 250SA	140	78	55	2900	8.6
		200	70
		240	61
60	ADZ125-100-315	210	142.5	160	2900	8.5
		300	130
		360	108.5
61	ADZ125-100-315A	192	126.7	132	2900	8.6
		275	115
		358	92.7
62	ADZ125-100-315B	175	115.6	110	2900	8.6
		250	105
		325	86.2
63	ADZ125-100-315S	154	143	132	2900	7
		220	130
		264	108
64	ADZ125-100- 315SA	140	126	110	2900	7
		200	115

50Hz,4-Pole,Rated Speed:1450rpm

SN.	Model	Rate Flow (m³/h)	Rate Head (m)	Power (kw)	Speed (r/min)	NPSH(m)

1	ADZ50-32-200	8.8	15.1	1.1	1450	1.5
		12.5	14
		16.3	12.1
2	ADZ50-32-200A	8	13.5	0.75	1450	1.5
		11.5	12
		15	10.2
3	ADZ50-32-200B	7.5	12.5	0.75	1450	1.5
		10.5	11
		13.7	9.5
4	ADZ65-50-160	17.5	9.9	1.1	1450	1.5
		25	9
		32.5	8
5	ADZ65-50-160A	16.4	7.8	1.1	1450	1.8
		23.5	7
		30.5	6
6	ADZ65-50-160B	13	6.2	0.75	1450	1.8
		21.5	5.5
		28	4.5
7	ADZ65 40-200	17.5	15.4	2.2	1450	1.5
		25	14
		32.5	12.4
8	ADZ65-40-200A	16.4	13.2	1.5	1450	1.8
		23.5	12
		30.5	10.5
9	ADZ65-40-200B	13	11.1	1.1	1450	1.8
		21.5	10
		28	8.6
10	ADZ65 40-250	17.5	23.5	3	1450	1.6
		25	22
		32.5	20
11	ADZ65-40-250A	14	20.1	2.2	1450	1.8
		23.5	18
		30.5	15.9
12	ADZ65-40-250B	13	17.5	2.2	1450	1.8
		21.5	16
		28	14.3
13	ADZ65 40-315	17.5	37.5	5.5	1450	1.6
		25	36
		32.5	32
14	ADZ65 40-315A	16.4	33.5	5.5	1450	1.8
		23.5	32
		30.5	28.2
15	ADZ65-40-315B	13	29.5	4	1450	1.8
		21.5	28
		28	24.2
16	ADZ80-65-160	35	9.8	2.2	1450	2
		50	9
		65	8
17	ADZ80-65-160A	32.5	7.7	1.5	1450	2.2
		46.5	7
		60.5	6.1
18	ADZ80-65-160B	31	6.2	1.1	1450	2.2
		44.5	5.5
		58	4.3
19	ADZ80-50-200	35	15	3	1450	2
		50	14
		65	12.2
20	ADZ80-50-200A	32.5	13	3	1450	2.2
		46.5	12
		60.5	10
21	ADZ80-50-200B	31	11	2.2	1450	2.2
		44.5	10
		58	8.6
22	ADZ80-50-250	35	23.5	5.5	1450	2
		50	22
		65	20.2
23	ADZ80-50-250A	32.5	21.8	5.5	1450	2.2
		46.5	20
		60.5	17.5
24	ADZ80-50-250B	31	19.6	4	1450	2.2
		44.5	18
		58	15.8
25	ADZ80-50-315	35	37.2	11	1450	2
		50	35
		65	32
26	ADZ80-50-315A	32.5	32.5	7.5	1450	2.2
		46.5	30
		60.5	27.2
27	ADZ80-50-315B	31	26.2	5.5	1450	2.2
		44.5	24
		58	21.4
28	ADZ100-80-160	56	9.9	3	1450	2.3
		80	9
		104	7.8
29	ADZ100-80-160A	53.2	8.5	3	1450	2.5
		76	7.5
		98.8	6.3
30	ADZ100-80-160B	50.8	6.9	2.2	1450	2.5
		72.5	6
		94.3	4.8
31	ADZ100-65-200	56	15.2	5.5	1450	2.3
		80	14
		104	12.2
32	ADZ100-65-200A	53.2	13.2	4	1450	2.5
		76	12
		98.8	10.1
33	ADZ100-65-200B	50.8	11.2	3	1450	2.5
		72.5	10
		94.3	7.8
34	ADZ100-65-250	56	23.8	7.5	1450	2.3
		80	22
		104	20.2
35	ADZ100-65-250A	53.2	21.7	7.5	1450	2.5
		76	20
		98.8	17.5
36	ADZ100-65-250B	50.8	17.5	5.5	1450	2.5
		72.5	16
		94.3	13.5
37	ADZ100-65-315	56	37	15	1450	2.3
		80	35
		104	32
38	ADZ100-65-315A	53.2	32.5	11	1450	2.5
		76	30
		98.8	25.5
39	ADZ100-65-315B	50.8	25.5	7.5	1450	2.5
		72.5	23
		94.3	18.5
40	ADZ125-100-200	105	15.7	11	1450	2.5
		150	14
		195	11.6
41	ADZ125-100-200A	98	13.7	7.5	1450	2.8
		140	12
		182	9.6
42	ADZ125-100-200B	91	11.6	5.5	1450	2.8
		130	10
		169	8
43	ADZ125-100-250	105	24.5	15	1450	2.5
		150	22
		195	18.8
44	ADZ125-100-250A	98	22.5	15	1450	2.8
		140	20
		182	16.5
45	ADZ125-100-250B	91	19.5	11	1450	2.8
		130	18
		169	14.8
46	ADZ125-100-315	105	38.2	22	1450	2.5
		150	35
		195	30.5
47	ADZ125-100-315A	98	34.2	18.5	1450	2.8
		140	30
		182	25.5
48	ADZ125-100-315B	91	28.5	15	1450	2.8
		130	25
		169	20.5
49	ADZ125-100-315S	80	38.2	18.5	1450	3
		115	35
		150	30.5
50	ADZ125-100- 315SA	77	36.2	15	1450	3
		100	32
		130	27.5
51	ADZ125-100-400	105	59.5	37	1450	2.5
		150	56
		195	48.5
52	ADZ125-100-400A	98	51.5	30	1450	2.8
		140	48
		182	40.5
53	ADZ125-100-400B	91	41.5	22	1450	2.8
		130	38
		169	30.5
54	ADZ125-100-400S	80	59.5	30	1450	3
		115	56
		150	48.5
55	ADZ125-100- 400SA	77	53.5	22	1450	3
		100	50
		130	42.5
56	ADZ150-125-250	210	24.8	30	1450	3.2
		300	22
		390	19
57	ADZ150-125-250A	192	22.8	22	1450	3.5
		275	20
		358	16.4
58	ADZ150-125-250B	175	18.5	18.5	1450	3.5
		250	16
		325	12.5
59	ADZ150-125-315	210	38.5	45	1450	3.2
		300	35
		390	30.5
60	ADZ150-125-315A	192	33.5	37	1450	3.5
		275	30
		358	25.5
61	ADZ150-125-315B	175	28.5	30	1450	3.5
		250	25
		325	20.5
62	ADZ150-125-315S	150	38.5	37	1450	3.5
		220	35
		285	30.5
63	ADZ150-125- 315SA	140	35.5	30	1450	3.5
		200	32
		260	27.5
64	ADZ150-125-400	210	62.6	75	1450	3.2
		300	56
		390	50.5
65	ADZ150-125-400A	192	56.6	55	1450	3.5
		275	50
		358	44.2
66	ADZ150-125-400B	175	48.5	45	1450	3.5
		250	42
		325	38.6
67	ADZ150-125-400S	150	62.6	55	1450	3.8
		220	56
		285	49.5
68	ADZ150-125- 400SA	140	50.2	45	1450	3.8
		200	50
		260	42.5
69	ADZ200-150-250	350	23.5	45	1450	5.5
		500	20
		600	15
70	ADZ200-150-250A	315	21.5	37	1450	5.8
		450	18
		540	13
71	ADZ200-150-315	350	39.4	75	1450	5.5
		500	35
		600	30.2
72	ADZ200-150-315A	315	33.5	55	1450	5.8
		450	30
		540	24.8
73	ADZ200-150-315B	280	27.6	45	1450	5.8
		400	25
		480	20.3
74	ADZ200-150-315S	280	39	55	1450	5.8
		400	35
		480	30
75	ADZ200-150- 315SA	260	33.5	45	1450	5.8
		375	30
		450	25
76	ADZ200-150 400	350	61	110	1450	5.5
		500	56
		600	49.5
77	ADZ200-150 400A	315	55	90	1450	5.8
		450	50
		540	43.5
78	ADZ200-150-400B	280	50.5	75	1450	5.8
		400	45
		480	38.5
79	ADZ200-150 400S	280	60	90	1450	5.8
		400	56
		480	50.5
80	ADZ200-150- 400SA	260	55	75	1450	5.8
		375	50
		450	43.5
81	ADZ200-150-500	350	91.5	200	1450	5.3
		500	85
		600	76
82	ADZ200-150-500A	315	86	160	1450	5.3
		450	80
		540	71
83	ADZ200-150-500B	280	81	132	1450	5.3
		400	75
		480	67
84	ADZ250-200-250	500	24.5	55	1450	6.5
		720	20
		860	17
85	ADZ250-200-250A	420	19.5	45	1450	6.5
		600	17
		720	14
86	ADZ250-200-315	525	38	90	1450	6.5
		750	32
		900	30
87	ADZ250-200-315A	455	33	75	1450	7
		650	30
		780	25
88	ADZ250-200-315B	400	28	55	1450	7
		580	25
		700	20
89	ADZ250-200 400	525	60	160	1450	7
		750	55
		900	49
90	ADZ250-200 400A	455	55	132	1450	7
		650	50
		780	45
91	ADZ250-200-400B	420	50	110	1450	7
		600	45
		720	40
92	ADZ300-250-250	560	24.5	75	1450	8.5
		800	20
		960	15.5
93	ADZ300-250-250A	500	21.5	55	1450	8.5
		720	17
		860	14
94	ADZ300-250-315	700	36.5	110	1450	8.2
		1000	32
		1200	27.5
95	ADZ300-250-315A	630	32.5	90	1450	8.5
		900	28
		1080	23.5
96	ADZ300-250-315B	560	29.5	75	1450	8.5
		800	25
		960	20.5
97	ADZ300-250-400	700	61	200	1450	8.2
		1000	55
		1200	50.5
98	ADZ300-250-400A	630	56.6	160	1450	8.5
		900	50
		1080	44.2
99	ADZ300-250-400B	560	50.5	132	1450	8.5
		800	45
		960	38.5
100	ADZ300-250-400C	525	45.5	110	1450	8.5
		750	40
		900	33.5
