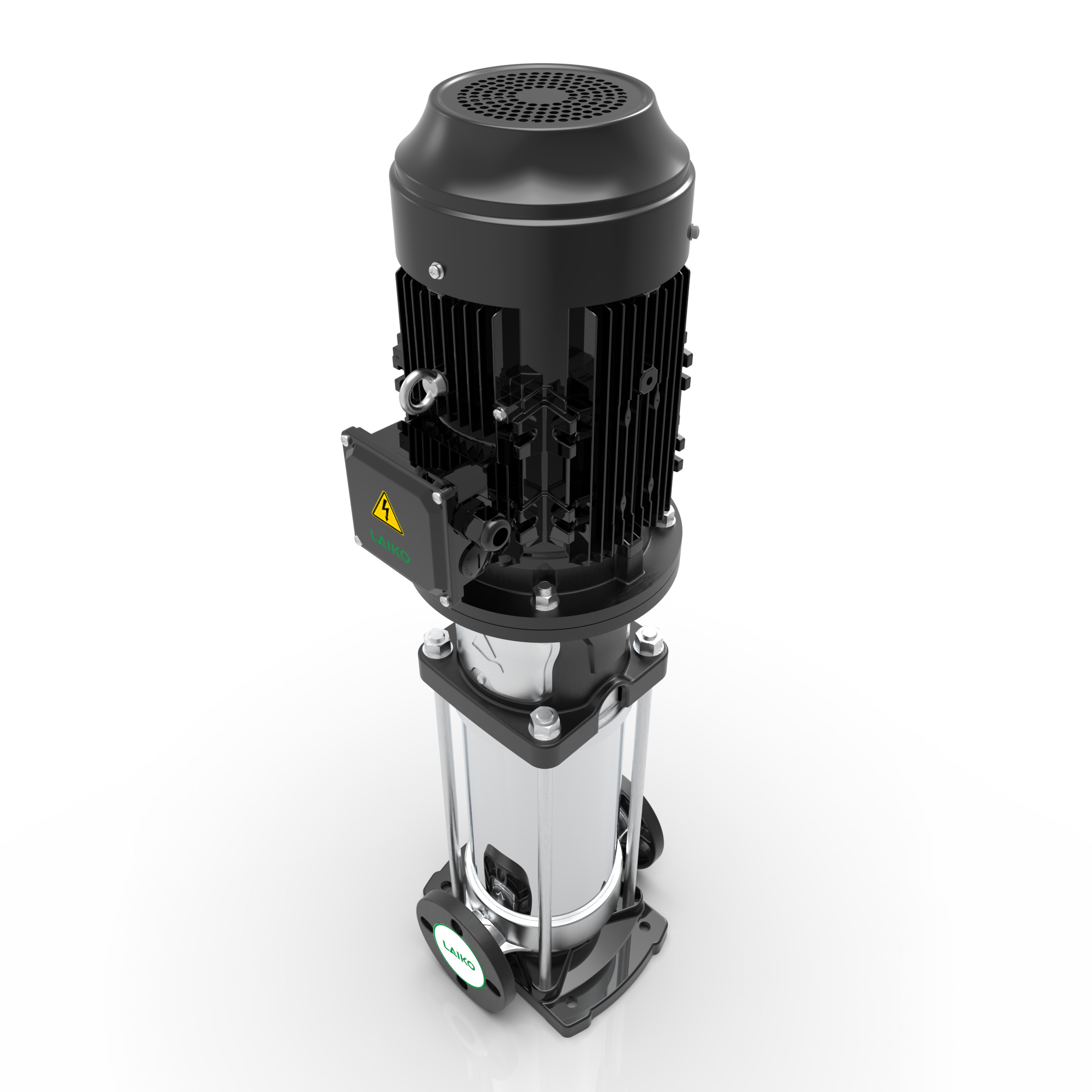

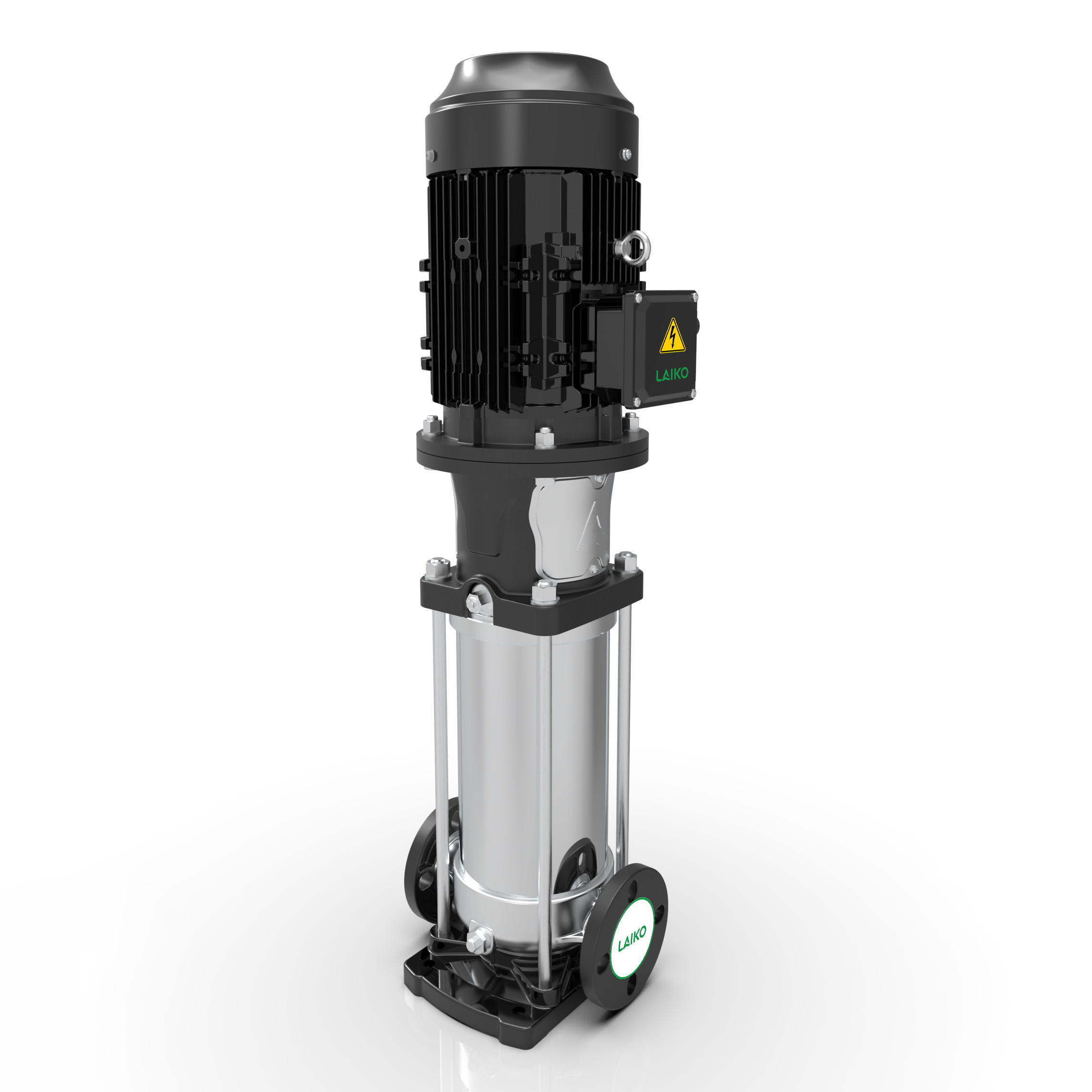

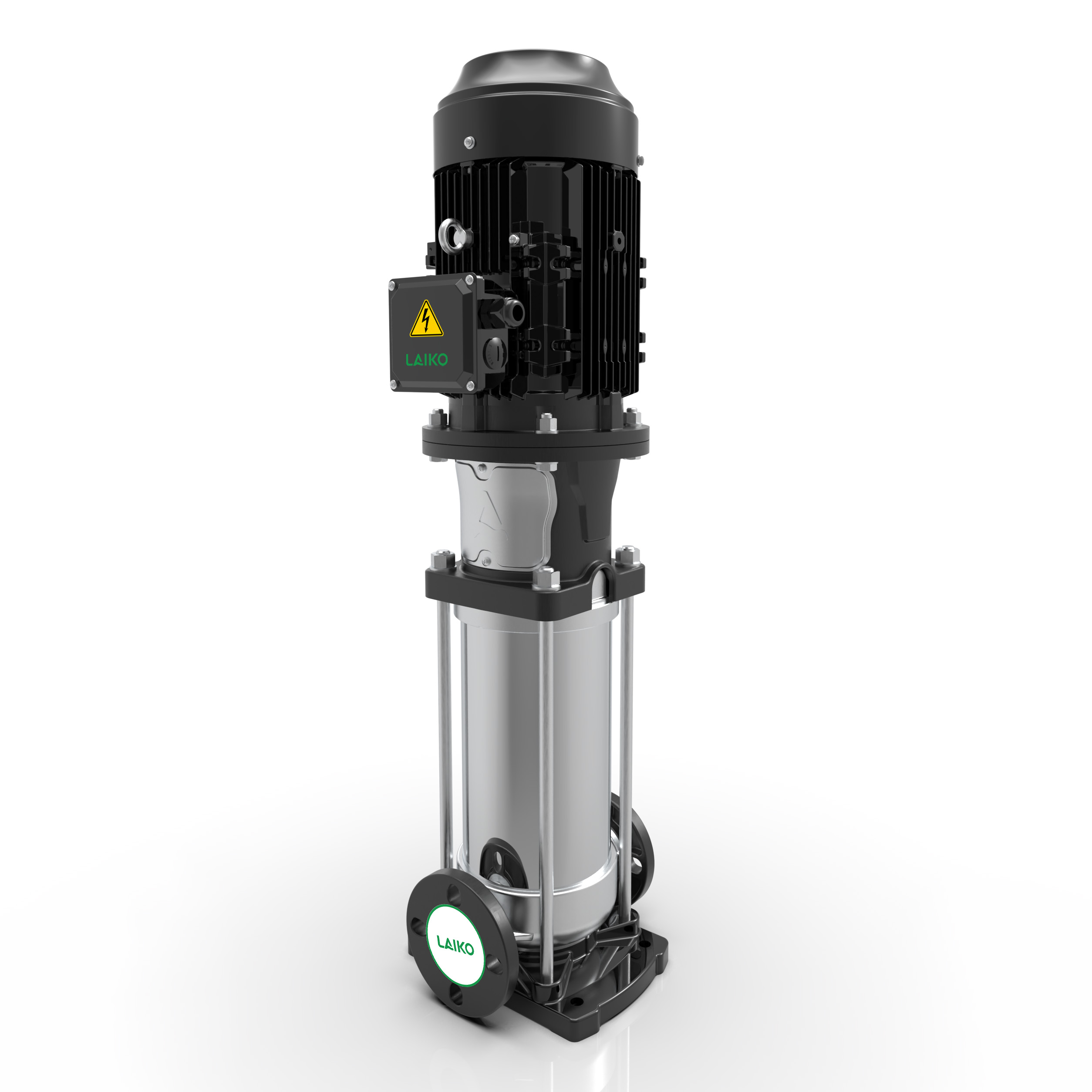

Vertical Multistage Centrifugal Pump for Water Supply(KLDS)


Availability:

Quantity:

Inquire Add to Basket

Model:
KLDS
Brand:
LAIKO
Code:
LAIKO-KLDS

KLD/KLDS Vertical Multistage Centrifugal Pump is engineered for high efficiency (MEI >0.7), low noise, and robust durability with graphite iron housing. Designed for water supply, treatment, irrigation, and industrial cooling, it ensures reliable performance in demanding environments. Featuring modular stage design, easy maintenance with cartridge seals, and optional IoT integration for predictive monitoring, it reduces energy costs and downtime, making it an ideal choice for sustainable and intelligent fluid management.

Vertical Multistage Centrifugal Pump Stainless steel SS304 Centrifugal Pump KLD/KLDS Vertical Multistage Centrifugal Pump Multistage Centrifugal Pump vertical multistage pump Water Treatment water treatment centrifugal pump water treatment specialized pump water treatment pump 60Hz Customize Centrifugal Pump

Product Description

Structure Diagram

Performance Parameters

Catalog

▍Application

KLD/KLDS is a new hydraulic and energy-efficient vertical multi-stage centrifugal pump. According to the European Union standard, the MEl value is >0.7. The cast iron is made of global graphite iron. The product has undergone a new industrial design, the utility model has the advantages of higher energy efficiency, lower noise,lower vibration, higher reliability, compact structure,beautiful appearance,convenient operation and maintenance, etc.

KLD.212

▍Model Description

5164f7ff-105d-4988-a014-371dd5f93606

▍Operating Environment

KLD/KLDS series vertical multi-stage centrifugal pumps are suitable for conveying low viscosity, non-flammable,explosive and vaporizing, non-solid particles and fibers of liquid.

Water supply: High-rise building water supply and drainage, water filtration and transmission, pipeline pressurization, etc.

Water treatment: ultrafiltration system, reverse osmosis system, distillation system,separator swimming pool and other water treatment systems.

Irrigation: agricultural sprinkler irrigation, drip irrigation and other systems.

Others: food and beverage, pharmaceutical industry.

▍Operating Conditions

Low viscosity,non-flammable, explosive, vaporized,non-solid particles and fibers of the liquid, the liquid cannot have chemical reaction to the pump material, when the liquid density and viscosity is greater than water, need to be equipped with high-power motor, consult us for details please.

Liquid temperature: normal temperature: -20°C~+ 70°C
hot water type: -20°C~+ 120°C
Flow range: 0.4~330m³/h
Medium pH value: 3~9
Highest ambient temperature: + 40°C
Highest altitude: 1000m

▍Key Applications

The KLD/KLDS series excels in scenarios demanding precision, durability, and energy savings:

1. High-Rise Building Water Systems

Pressure Boosting: Maintains consistent water supply up to 305m head (vs. 250m in Link 6’s pipeline pumps).
Fire Safety Compliance: Meets EN 12845 standards for fire suppression systems, outperforming Link 2’s basic fire pumps.

2. Water Treatment & Recycling

Reverse Osmosis (RO) Support: Handles pH 3–9 media, ideal for ultrafiltration (Link 4) and wastewater reuse projects.
Zero-Leakage Design: Stainless steel mechanical seals prevent contamination in pharmaceutical/food applications (Link 5).

3. Agricultural Modernization

Drip Irrigation Optimization: Low pulsation ensures uniform water distribution (vs. vibration-prone models in Link 8).
Corrosion Resistance: Graphite iron construction withstands fertilizers/chemicals better than standard cast iron.

4. Industrial Cooling & HVAC

Temperature Tolerance: Operates at -20°C to +120°C (Link 7’s pumps max at +70°C), suitable for geothermal loops.

▍Motor

Fully enclosed standard air-cooled two-pole standard motor
Protection Class: lP55
Insulation Class: F

▍Product Scope

Model Description	KLD1 KLDS1	KLD3 KLDS3	KLD5 KLD5	KLD10 KLDS10	KLD15 KLDS15	KLD20 KLDS20	KLD32 KLDS32	KLD45 KLDS45	KLD64 KLDS64	KLD95 KLDS95	KLD125 KLDS125	KLD155 KLDS155	KLD185 KLDS185	KLD215 KLDS215	KLD255 KLDS255
rated flow [m³/h]	1	3	5	10	15	20	32	45	64	95	125	155	185	215	255
flow range [m³/h]	0.5-2.4	1.2-4.4	2.5-8.5	5-14	8-22	10-29	15-40	25-55	30-80	50-125	60-160	80-200	90-240	105-282	125-330
maximum pressure [bar]	24	23	24	24	23	25	28	32	24	30	33	29	34	34	28
motor power [kW]	0.37-2.2	0.37-3	0.37-4	0.75-11	1.1-15	1.1-18.5	1.5-30	3-45	5.5-55	5.5-75	11-110	11-110	15-200	18.5-200	30-200
temperature range [℃]	-20℃~+120℃ Note:the maximum allowable working pressure and liquid temperature range refer to the pump's own tolerance
highest efficiency [%]	48	58	70	72	70	72	74	78	78	82	79	80	81	81.5	82
KLD pipeline connection
oval flange	G1	G1	G1 1/4	1	/	1	/	1	1	/	/	/	/	/	1
DIN flange	DN25	DN25	DN32	DN40	DN50	DN50	DN65	DN80	DN100	DN100	DN150	DN150	DN200	DN200	DN200
KLDS pipeline connection
DIN flange	DN25	DN25	DN32	DN40	DN50	DN50	DN65	DN80	DN100	DN100	DN150	DN150	DN200	DN200	DN200
clamp connection	φ42	φ42	φ42	φ57	φ57	φ57	/	/	/	/	/	/	/	/	/
threaded connection	G1 1 /4	G1 1 /4	G1 1 /4	G2	G2	G2	/	/	/	/	/	/	/	1	/

▍Application Scope

▍Key Innovations

Hydraulic Redesign: Optimized impeller geometry reduces turbulence and cavitation risks.
Modular Construction: Stackable stages allow customization for head/pressure requirements.
Smart-Ready Design: Compatibility with IoT sensors for predictive maintenance (aligned with Industry 4.0 trends).

▍Product Comparison: KLD/KLDS vs Competitors

Feature	KLD/KLDS (Laiko)	CDLF Series (Link 5)	DLR Fire Pump (Link 2)
Energy Efficiency	MEI >0.7 (EU Standard)	MEI 0.6–0.65	Not Rated
Material Durability	Global Graphite Iron + FKM	304/316 Stainless Steel	Cast Iron
Noise Reduction	68 dB at 2900 RPM	72 dB	85 dB
Customization	Modular stage adjustment	Fixed stages	Single-stage only
Smart Integration	IoT-ready (optional)	None	Basic pressure switches
Lifetime Cost	15% lower TCO over 10 years	Higher seal replacement cost	Frequent bearing replacements

▍Product Advantages

1. Energy Efficiency & Sustainability

MEI Compliance: Exceeds EU’s MEI >0.7 threshold, reducing CO₂ emissions by 18% vs non-compliant pumps.
Regenerative Drives: Compatible with variable frequency drives (VFDs) for 30–50% energy savings in partial-load operations.

2. Durability in Harsh Environments

Saltwater Resistance: Graphite iron resists pitting corrosion (superior to Link 6’s 316L stainless in chloride-rich media).
Thermal Stability: Handles thermal shocks from -20°C to +120°C without performance degradation.

3. Low Maintenance & Serviceability

Cartridge Seal Design: Replacement takes <30 minutes (vs. 2+ hours for traditional seals in Link 3’s horizontal pumps).
Tool-Free Disassembly: No special tools required for impeller access, reducing downtime.

4. Smart Monitoring Capabilities

Vibration Sensors: Early detection of imbalance/misalignment (predicts 90% of failures before breakdowns).
Cloud Integration: Real-time data feeds to SCADA/BMS systems for centralized fleet managem

Structure Diagram

Performance Parameters(Frequency:50Hz)

Model	Motor Power (kW)	Q [m³/h]	0	0.5	0.7	1	1.2	1.4	1.6	1.8	2	2.2	2.4
KLD/KLDS1-2	0.37	H(m)	11.8	11.5	11.2	10.5	10.3	9.7	9	8	6.8	5.5	4
KLD/KLDS1-3	0.37		17.5	17	16.8	16	15.6	14.8	13.5	12	10	8.5	6
KLD/KLDS1-4	0.37		23.5	23	22.5	21.5	21	19.8	18	16	13.5	11	8
KLD/KLDS1-5	0.37		29	28.5	28	27	26	24.5	22.5	20	17	14	10
KLD/KLDS1-6	0.37		35	34.5	34	32.5	31.5	30	27	24	20.5	17	12.5
KLD/KLDS1-7	0.37		41	40.5	40	39	37	35	32	28	24	20	15
KLD/KLDS1-8	0.55		47	46	45.5	43.5	42	40	37	33	29	24.5	18
KLD/KLDS1-9	0.55		52.5	52	51.5	49	47	44.5	41	37	32	27	20.5
KLD/KLDS1-10	0.55		58.5	58	57	55	52.5	50	46	42	37	31	23
KLD/KLDS1-11	0.55		64	63.5	63	61	58.5	55	51	46	40	33.5	25.5
KLD/KLDS1-12	0.75		70	69	68.5	67	64.5	61	57	52	45.5	37	28
KLD/KLDS1-13	0.75		75.5	75	74.5	73	70	66.5	61.5	56	49	40.5	31
KLD/KLDS1-15	0.75		87.5	86.5	85.5	84	81	76.5	71	65	57	47	36
KLD/KLDS1-17	1.1		99	98	97	95	91.5	86.5	81	73	64	53	41
KLD/KLDS1-19	1.1		110	109	108	106	103	98	91	82	72	59	46
KLD/KLDS1-21	1.1		122	121	120	117	113	107	100	90	79	66	51.5
KLD/KLDS1-22	1.1		128	127	126	122	118	112	105	95	83	69	54
KLD/KLDS1-23	1.5		134	133	132	128	123	118	111	102	90.5	76.5	58
KLD/KLDS1-25	1.5		146	145	144	139	134	128	121	111	98	83	63
KLD/KLDS1-27	1.5		158	157	155	150	145	138	130	119	106	90	69
KLD/KLDS1-30	1.5		175	174	172	167	161	154	145	133	118	100	77
KLD/KLDS1-32	2.2		189	188	186	180	174	166	155	143	129	110	85
KLD/KLDS1-33	22		195	194	192	186	180	171	160	148	133	113	87
KLD/KLDS1-34	2.2		200	199	198	192	185	176	165	152	137	117	90
KLD/KLDS1-36	2.2		212	211	209	203	196	186	175	161	145	124	95
KLD/KLDS1-38	2.2		225	224	221	215	208	197	185	171	153	131	101
KLD/KLDS1-40	2.2		237	236	233	226	219	208	195	180	161	138	106

Model	Motor Power (kW)	Q [m³/h]	0	1.2	1.6	2	2.4	2.8	3	3.2	3.6	4	4.4
KLD/KLDS3-2	0.37	H(m)	14.7	14	13.5	13	12.5	11.5	11	10.5	9.5	8	6
KLD/KLDS3-3	0.37		22.2	21.5	21	20.5	19.5	18	17	16.5	15	12.5	9.5
KLD/KLDS3-4	0.37		29.7	29	28.5	27.5	26	24	23	22	20	17	13
KLD/KLDS3-5	0.55		37.2	36	35	33.5	32	30	29	28	25	21	16
KLD/KLDS3-6	0.55		45	43.5	42.5	41	39	36.5	35	33.5	30	25	19.5
KLD/KLDS3-7	0.75		52.5	51	50	49	46	43	41	39.5	35	30	23
KLD/KLDS3-8	0.75		60	58.5	58	56	53	49	47	45	40	34	26.5
KLD/KLDS3-9	1.1		67.5	66	65	63	60	56	53	51	45	38	30
KLD/KLDS3-10	1.1		75	73	72	70	66	61	59	56	50	42	33.5
KLD/KLDS3-11	1.1		82.5	80	79	77	73	68	65	62	55	47	37
KLD/KLDS3-12	1.1		90	88	86	83	79	74	71	67	59	50	40.5
KLD/KLDS3-13	1.5		98	95	93	90	86	80	77	73	64	54	44
KLD/KLDS3-14	1.5		105	102	101	98	92.5	86	83	78	69	58	47
KLD/KLDS3-15	1.5		113	110	108	105	100	94	90	86	76	64	51
KLD/KLDS3-16	1.5		120	118	116	112	107	100	96	92	81	69	54
KLD/KLDS3-18	2.2		136	133	130	126	120	113	108	102	90	76	61
KLD/KLDS3-19	2.2		143	140	137	132	126	119	114	108	96	82	64
KLD/KLDS3-20	2.2		151	148	144	140	133	125	120	114	100	85	67
KLD/KLDS3-21	2.2		158	155	152	147	140	131	126	120	106	90	71
KLD/KLDS3-22	2.2		166	162	158	154	146	137	132	125	110	93	74
KLD/KLDS3-23	2.2		173	170	166	161	153	144	138	131	115	97	78
KLD/KLDS3-24	2.2		181	177	173	168	160	150	144	137	120	101	81
KLD/KLDS3-25	3		188	185	181	175	166	156	150	142	125	105	85
KLD/KLDS3-27	3		204	200	195	188	180	169	162	155	138	117	92
KLD/KLDS3-28	3		212	207	202	195	187	175	168	160	143	121	95
KLD/KLDS3-29	3		220	215	210	203	194	182	175	167	148	126	99
KLD/KLDS3-31	3		235	230	224	216	207	194	187	178	159	134	106

Model	Motor Power (kW)	Q [m³/h]	0	2.5	3	4	5	6	7	8	8.5
KLD/KLDS5-2	0.37	H(m)	14.7	13.5	13.3	12.5	11.5	9	7	5	4
KLD/KLDS5-3	0.55		22.1	21	20.5	19	17.5	15	12	9	7.5
KLD/KLDS5-4	0.55		29.5	28	27.5	26	24	21	17	13	11
KLD/KLDS5-5	0.75		37	35	34.5	33	30	27	23	18	15
KLD/KLDS5-6	1.1		44.5	42	41.5	40	37	33	27	21	18
KLD/KLDS5-7	1.1		52	49.5	48.5	46	42.5	38.5	31.5	24.5	21
KLD/KLDS5-8	1.1		59	57	56	53	49	44	36	28	24
KLD/KLDS5-9	1.5		67	64	63	60	55	49.5	41.5	31.5	27
KLD/KLDS5-10	1.5		47.5	71	70	66	62	55	46	35	30
KLD/KLDS5-11	1.5		82	78	77	73	68	61	51	39	33
KLD/KLDS5-12	2.2		89.5	85	84	81	74.5	66	55	43	37
KLD/KLDS5-13	2.2		97	92	91	87	80	71	60	47	40
KLD/KLDS5-14	2.2		104	100	98	93	87	77	65	51	43.5
KLD/KLDS5-15	2.2		112	107	106	100	93	82	69	54	46.5
KLD/KLDS5-16	2.2		119	114	112	107	99	88	74	58	50
KLD/KLDS5-17	3		127	121	118.5	113	105	94	79	63	53
KLD/KLDS5-18	3		134	128	126	120	111	99	84	66	56
KLD/KLDS5-20	3		149	143	140	133	124	110	93	73	63
KLD/KLDS5-21	3		157	150	147	140	130	116	98	77	66
KLD/KLDS5-22	4		164	157	154	146	136	122	103	82	70
KLD/KLDS5-23	4		172	165	161	153	142	128	108	86	74
KLD/KLDS5-24	4		179	172	168	160	149	133	113	90	77
KLD/KLDS5-25	4		187	178	175	167	155	139	117	93	80
KLD/KLDS5-27	4		202	193	189	180	168	150	127	101	86
KLD/KLDS5-28	4		210	201	197	187	174	156	132	105	90
KLD/KLDS5-29	5.5		217	208	204	194	180	163	139	111	95
KLD/KLDS5-30	5.5		225	216	212	201	186	169	144	115	98
KLD/KLDS5-33	5.5		249	238	234	222	206	187	160	127	109

Model	Motor Power (kW)	Q [m³/h]	5	6	8	10	12	14
KLD/KLDS10-1	0.75	H(m)	10.2	10	9	8	7	4.5
KLD/KLDS10-2	0.75		21	20.5	19	16.5	13.5	9.5
KLD/KLDS10-3	1.1		31.5	31	28.5	25.5	22	16.5
KLD/KLDS10-4	1.5		42	41	38	34	29	22
KLD/KLDS10-5	2.2		52.5	51	48	43	37	28
KLD/KLDS10-6	2.2		63	62	58	52	44	34
KLD/KLDS10-7	3		74	73	69	62	52	40
KLD/KLDS10-8	3		85	84	79	71	60	46
KLD/KLDS10-9	4		96	94	89	80	67	52
KLD/KLDS10-10	4		107	105	98	89	76	58
KLD/KLDS10-11	4		118	115	108	98	84	64
KLD/KLDS10-12	5.5		129	127	119	107	91	70
KLD/KLDS10-13	5.5		140	138	130	116	99	76
KLD/KLDS10-14	5.5		151	148	139	125	106	82
KLD/KLDS10-15	5.5		162	159	149	134	114	88
KLD/KLDS10-16	7.5		173	170	159	144	123	94
KLD/KLDS10-17	7.5		184	180	169	153	130	100
KLD/KLDS10-18	7.5		195	191	180	163	141	108
KLD/KLDS10-19	7.5		206	201	190	172	147	113
KLD/KLDS10-20	7.5		217	213	200	181	155	120
KLD/KLDS10-21	7.5		228	223	210	191	162	128
KLD/KLDS10-22	11		240	235	221	201	171	132

Model	Motor Power (kW)	Q [m³/h]	8	9	12	15	18	20	22
KLD/KLDS15-1	1.1	H(m)	13.5	13	12	11	10	9.5	8
KLD/KLDS15-2	2.2		28	26	25	23	21	19	17
KLD/KLDS15-3	3		41	40	38	35	32	29	25
KLD/KLDS15-4	4		56	55	51	47	43	39	35
KLD/KLDS15-5	4		68	66	64	58	53	49	43
KLD/KLDS15-6	5.5		82	80	77	71	64	59	52
KLD/KLDS15-7	5.5		95	94	89	83	75	68	60
KLD/KLDS15-8	7.5		110	108	103	96	86	79	70
KLD/KLDS15-9	7.5		123	120	115	108	97	89	78
KLD/KLDS15-10	11		138	136	129	120	109	100	89
KLD/KLDS15-11	11		151	149	142	130	119	109	98
KLD/KLDS15-12	11		165	162	155	142	130	119	107
KLD/KLDS15-13	11		176	174	166	153	139	128	113
KLD/KLDS15-14	11		190	188	180	166	151	138	122
KLD/KLDS15-15	15		203	202	192	180	162	148	130
KLD/KLDS15-16	15		217	214	205	191	174	159	141
KLD/KLDS15-17	15		232	230	219	205	185	169	150
KLD/KLDS15-18	15		245	243	230	216	196	179	159

Model	Motor Power (kW)	Q [m³/h]	10	12	16	18	20	24	26	29
KLD/KLDS20-1	1.1	H(m)	13	13	12	11	10.5	9	8	5
KLD/KLDS20-2	2.2		28	27	25	24	22.5	19	18	12
KLD/KLDS20-3	4		43	42	39	38	36	30	28	22
KLD/KLDS20-4	5.5		57	56	53	51	48	41	38	30
KLD/KLDS20-5	5.5		71	70	66	63	60	52	46	38
KLD/KLDS20-6	7.5		86	84	80	77	72	62	57	45
KLD/KLDS20-7	7.5		99	97	93	88	84	72	65	52
KLD/KLDS20-8	11		116	113	107	104	96	85	77	62
KLD/KLDS20-10	11		144	140	132	128	120	105	95	78
KLD/KLDS20-12	15		173	169	161	155	144	127	115	93
KLD/KLDS20-14	15		200	197	187	180	168	147	133	108
KLD/KLDS20-17	18.5		245	241	229	220	205	181	163	134

Model	Motor Power (kW)	Q [m³/h]	15	20	25	32	35	40
KLD/KLDS32-1-1	1.5	H(m)	15	14	13	10	8	5
KLD/KLDS32-1	2.2		18	17	16	13	11.5	9
KLD/KLDS32-2-2	3		31	29.5	26.5	20.5	17.5	12
KLD/KLDS32-2	4		37	35.5	32.5	27.5	25	19.5
KLD/KLDS32-3-2	5.5		50	47	43.5	35.5	31	22.5
KLD/KLDS32-3	5.5		55.5	53	49	41.5	37.5	29.5
KLD/KLDS32-4-2	7.5		68.5	65	60	49.5	44	32.5
KLD/KLDS32-4	7.5		74.5	70.5	66	56	50.5	40
KLD/KLDS32-5-2	11		88.5	84.5	78	65.5	58.5	45
KLD/KLDS32-5	11		94.5	90	84	72	65	52
KLD/KLDS32-6-2	11		107	102	94.5	79.5	71	55
KLD/KLDS32-6	11		113	108	100	85.5	77.5	61.5
KLD/KLDS32-7-2	15		127	121	112	94.5	85	66.5
KLD/KLDS32-7	15		133	126	118	101	92	73.5
KLD/KLDS32-8-2	15		145	138	128	108	98	76.5
KLD/KLDS32-8	15		151	144	134	115	104	83
KLD/KLDS32-9-2	18.5		165	158	147	124	112	88.5
KLD/KLDS32-9	18.5		171	163	152	131	119	95.5
KLD/KLDS32-10-2	18.5		184	175	163	138	125	98.5
KLD/KLDS32-10	18.5		190	181	169	145	133	106
KLD/KLDS32-11-2	22		203	194	181	154	140	111
KLD/KLDS32-11	22		209	200	187	161	147	118
KLD/KLDS32-12-2	22		222	212	197	168	152	121
KLD/KLDS32-12	22		227	217	203	176	160	128
KLD/KLDS32-13-2	30		244	233	218	187	169	136
KLD/KLDS32-13	30		250	239	224	193	177	145
KLD/KLDS32-14-2	30		263	251	234	201	183	146
KLD/KLDS32-14	30		269	258	241	207	188	156

Model	Motor Power (kW)	Q [m³/h]	30	40	50	60	64	70	80
KLD/KLDS64-1-1	5.5	H(m)	27	25	23	21	20	18	15
KLD/KLDS64-1	7.5		30	29.5	29	28	27	26	24
KLD/KLDS64-2-2	11		53	51	47	43	41	37	30
KLD/KLDS64-2	15		60	59	58	55	54	52	48
KLD/KLDS64-3-2	18.5		83	81	76	71	68	63	54
KLD/KLDS64-3	22		90	89	86	83	81	78	72
KLD/KLDS64-4-2	30		113	110	105	98	95	89	78
KLD/KLDS64-4	30		128	124	119	114	111	108	102
KLD/KLDS64-5-2	37		143	140	133	126	122	115	102
KLD/KLDS64-5	37		160	155	149	143	140	135	128
KLD/KLDS64-6-2	45		173	170	162	153	149	141	126
KLD/KLDS64-6	45		180	178	173	165	162	156	144
KLD/KLDS64-7-2	55		203	199	191	181	176	167	150
KLD/KLDS64-7	55		210	207	201	193	189	182	168
KLD/KLDS64-8-2	55		233	229	220	208	203	193	174
KLD/KLDS64-8	55		240	237	230	220	216	208	192

Model	Motor Power (kW)	Q [m³/h]	50	60	70	80	90	95	110	120	125
KLD/KLDS95-1-1	5.5	H(m)	23	22	20	18	16	15	11	8	7
KLD/KLDS95-1	7.5		29	28	27	26	24	23	18	16	14
KLD/KLDS95-2-2	11		44	43	41	38	34	31	23	17	15
KLD/KLDS95-2	15		58	56	54	52	49	46	37	31	28
KLD/KLDS95-3-2	18.5		71	68	66	62	57	55	42	31	26
KLD/KLDS95-3	22		87	84	81	78	73	69	56	48	43
KLD/KLDS95-4-2	30		102	99	95	90	83	78	60	48	43
KLD/KLDS95-4	30		116	113	109	104	97	92	76	64	58
KLD/KLDS95-5-2	37		131	127	122	116	107	100	79	65	58
KLD/KLDS95-5	37		145	141	136	130	122	115	96	80	72
KLD/KLDS95-6-2	45		160	156	150	142	131	123	99	81	73
KLD/KLDS95-6	45		175	170	164	157	146	139	115	96	89
KLD/KLDS95-7-2	55		189	184	177	168	156	147	119	97	87
KLD/KLDS95-7	55		206	202	193	183	172	164	138	114	105
KLD/KLDS95-8-2	55		221	215	207	197	182	175	142	115	103
KLD/KLDS95-8	75		235	231	221	209	197	187	158	130	120
KLD/KLDS95-9-2	75		250	245	234	221	206	195	161	131	120
KLD/KLDS95-9	75		265	260	248	235	221	211	177	147	135
KLD/KLDS95-10-2	75		279	274	262	247	231	219	181	147	135
KLD/KLDS95-10	75		294	289	279	261	246	234	197	163	150

Model	Motor Power (kW)	Q [m³/h]	60	70	80	90	100	110	120	125	140	150	160
KLD/KLDS125-1	11	H(m)	32	31	30	29	28	27	25	24	22	20	17
KLD/KLDS125-2-2	15		51	48	46	43	40	37	34	33	27	23	18
KLD/KLDS125-2-1	18.5		54	52	51	50	49	47	45	43	35	31	27
KLD/KLDS125-2	22		65	64	62	60	58	56	52	50	44	40	35
KLD/KLDS125-3-1	30		89	87	85	82	78	74	70	67	58	51	44
KLD/KLDS125-3	37		97	96	94	91	87	83	77	75	67	61	53
KLD/KLDS125-4-2	37		114	111	108	104	98	94	89	85	74	64	55
KLD/KLDS125-4	45		131	129	125	121	117	113	105	101	89	82	71
KLD/KLDS125-5	55		164	162	158	152	147	142	133	128	114	103	91
KLD/KLDS125-6	75		198	196	189	182	178	170	161	155	137	122	108
KLD/KLDS125-7	75		231	227	222	218	209	199	187	180	159	144	126
KLD/KLDS125-8	90		264	260	254	248	238	228	213	206	182	164	144
KLD/KLDS125-9-2	90		279	274	269	261	250	239	224	216	188	168	146
KLD/KLDS125-9	110		297	293	287	279	268	257	243	235	207	187	164
KLD/KLDS125-10	110		331	325	318	311	298	284	270	260	230	207	182

Model	Motor Power (kW)	Q [m³/h]	80	90	100	110	120	130	140	150	155	170	180	190	200
KLD/KLDS155-1-1	11	H(m)	29	28	27	26	25	23	21	20	19	16	14	11	8
KLD/KLDS155-1	15		35	34	33	32	31	30	29	28	27	24	21	19	16
KLD/KLDS155-2-2	22		58	56	54	51	48	45	42	39	37	31	27	22	17
KLD/KLDS155-2-1	30		64	62	60	58	56	53	50	48	47	40	35	30	24
KLD/KLDS155-2	30		71	68	67	66	64	61	58	55	54	48	44	39	34
KLD/KLDS155-3-2	37		93	91	89	85	81	77	72	67	64	55	49	43	37
KLD/KLDS155-3-1	45		100	96	94	92	89	84	79	75	72	64	58	50	42
KLD/KLDS155-3	45		107	103	101	99	96	93	90	85	82	73	66	58	50
KLD/KLDS155-4-2	55		129	124	121	117	112	106	100	94	91	79	71	61	51
KLD/KLDS155-4-1	55		136	133	130	126	122	117	112	105	101	90	81	70	60
KLD/KLDS155-4	75		142	137	134	131	128	123	118	112	108	97	88	78	67
KLD/KLDS155-5-2	75		166	163	159	154	148	142	135	127	122	108	96	83	70
KLD/KLDS155-5	75		175	173	171	168	164	158	151	142	137	122	111	97	83
KLD/KLDS155-6	90		212	209	205	201	196	190	181	171	165	147	133	115	98
KLD/KLDS155-7	110		247	244	241	236	231	222	212	200	194	171	154	135	115
KLD/KLDS155-8-2	110		272	267	262	256	249	238	226	213	205	180	161	141	120

Model	Motor Power (kW)	Q [m³/h]	90	120	140	160	180	185	200	220	240
KLD/KLDS185-1-1A	15	H(m)	30	29	28	26	24	23	20	17	14
KLD/KLDS185-1-1	18.5		38	36	35	33	29	28	25	21	17
KLD/KLDS185-1	22		40	38	37	36	34	33.5	31	28	24
KLD/KLDS185-2-2A	30		61	59	56	53	48	46	41	34	28
KLD/KLDS185-2-2	37		75	72	69	65	59	57	51	42	34
KLD/KLDS185-2	45		83	81	79	76	70	68	63	55	47
KLD/KLDS185-3-3	55		113	109	104	98	88	85	76	64	51
KLD/KLDS185-3	75		124	121	118	114	105	102	95	82	71
KLD/KLDS185-4-3	75		154	149	143	136	123	119	108	91	75
KLD/KLDS185-4	90		165	161	157	152	140	137	127	109	95
KLD/KLDS185-5-3	110		196	189	183	174	158	154	139	118	98
KLD/KLDS185-5	110		207	202	197	190	175	171	158	137	118
KLD/KLDS185-6-3	132		237	230	222	212	193	187	171	146	122
KLD/KLDS185-6	132		248	242	236	228	210	205	190	164	142
KLD/KLDS185-7-3	160		278	270	261	250	228	221	203	173	146
KLD/KLDS185-7	160		289	282	275	266	245	239	222	191	166
KLD/KLDS185-8-3	200		320	310	301	288	263	256	234	200	169
KLD/KLDS185-8	200		331	323	315	304	280	273	253	219	189

Model	Motor Power (kW)	Q [m³/h]	105	120	140	160	180	200	215	240	260	280	282
KLD/KLDS215-1-1A	19	H(m)	33	31	30	28	26	24	23	18	15	13	11
KLD/KLDS215-1-1	22		39	38	37	35	33	30	28	24	20	16	15
KLD/KLDS215-1	37		51	50	49	48	46	43	41	37	33	29	28
KLD/KLDS215-2-2A	37		69	66	63	60	57	52	50	40	34	27	25
KLD/KLDS215-2-2	45		78	77	74	70	66	60	56	47	40	32	31
KLD/KLDS215-2-1	55		90	89	86	83	79	73	69	60	53	45	44
KLD/KLDS215-2	75		102	101	98	95	91	87	82	73	66	58	57
KLD/KLDS215-3-2	75		129	127	123	118	112	103	97	84	73	60	59
KLD/KLDS215-3	90		153	151	147	143	137	130	123	110	99	87	85
KLD/KLDS215-4-2	110		180	177	172	165	157	147	138	121	106	89	87
KLD/KLDS215-4	132		204	201	196	191	183	173	164	147	132	116	113
KLD/KLDS215-5-2	132		231	228	221	213	203	190	180	157	139	118	116
KLD/KLDS215-5	160		255	252	245	238	228	217	203	183	165	145	142
KLD/KLDS215-6-3	160		270	266	258	248	236	220	208	181	159	134	131
KLD/KLDS215-6	200		306	302	294	286	274	260	248	220	198	174	170
KLD/KLDS215-7-2	200		333	328	319	308	294	277	262	231	205	176	172

Model	Motor Power (kW)	Q [m³/h]	125	140	160	180	200	220	240	255	280	300	320	330
KLD/KLDS255-1-1A	22	H(m)	36.7	34.5	33.6	31.5	29.6	27	24	25	17	14	10	8
KLD/KLDS255-1-1	30		38.8	38.3	37.8	37.3	35.8	33.1	30.2	28.5	23.8	19.8	16	13.7
KLD/KLDS255-1	37		46.8	46.5	46.2	45.8	45.1	43.9	41.6	40	35.5	31.9	28	26
KLD/KLDS255-2-2A	45		75	72	69	64	60.5	55	49	57	37	29.5	21.5	18
KLD/KLDS255-2-2	55		81	80	79	78	75	69	63	59	51	42.5	35	30.5
KLD/KLDS255-2	75		97	96	95	94	93	91	86	83	74	67	59	55
KLD/KLDS255-3-2	90		130	128	126	124	121	115	106	101	88	76	64	58
KLD/KLDS255-3	110		145	144	143	142	140	136	129	124	111	100	89	82
KLD/KLDS255-4-2	132		178	177	175	173	168	160	150	142	125	109	94	85
KLD/KLDS255-4	160		194	193	192	190	186	182	172	165	148	133	118	110
KLD/KLDS255-5-3	160		199	217	214	211	205	195	181	172	150	130	111	101
KLD/KLDS255-5	200		242	241	239	237	233	227	215	206	185	167	148	137
KLD/KLDS255-6-2	200		274	272	270	267	261	251	236	225	199	176	153	140
