Chemical Injection Pump vs Dosing Pump: What Is the Difference?

Procuring liquid-handling equipment often creates serious frustration for project engineers and buyers. You frequently face overlapping terminology when navigating supplier catalogs. This confusing overlap complicates the sourcing process immensely. You might wonder if you need a specific Chemical Injection Pump or another device entirely to do the job. Fortunately, the primary differences usually lie in industry vernacular, application context, and required accuracy. They rarely involve fundamentally different machine categories. We will help you navigate these confusing product names. This article serves as a technical decision-making framework. You will learn how to look past manufacturer marketing labels. We will show you how to specify the exact positive displacement pump your process demands. By the end, you will understand the mechanics behind the semantics. You can then confidently select equipment for your specific fluid handling needs.

Key Takeaways

• Mechanical Equivalence: Chemical injection pumps, dosing pumps, and metering pumps are all variations of positive displacement pumps designed for precise fluid delivery.

• Semantic Distinctions: "Metering" implies absolute precision (±1%), "Dosing" emphasizes the application or batching action, and "Injection" typically denotes introducing fluids into high-pressure systems.

• Mechanism Over Name: Selecting between diaphragm, peristaltic, or piston mechanisms dictates performance far more than the product's marketing label.

• Total System Design: Long-term reliability depends heavily on chemical compatibility, turndown ratios, and integrating the pump into a broader packaged skid system.

The Industry Myth: Semantics vs. Mechanics

Many professionals assume different names indicate distinct mechanical technologies. This is a common industry myth. In industrial fluid control, there is no standardized mechanical division between these terms. They all refer to positive displacement pumps. Manufacturers engineer these devices to deliver a highly accurate flow. They ensure repeatable chemical delivery into a process stream.

You might ask why this terminology fragmentation exists. The confusion mostly stems from regional preferences and specific industry conventions. Water treatment professionals use different words than oil and gas engineers. Historical manufacturer branding also plays a large role. Companies coined specific terms decades ago. Those terms stuck within certain sectors.

Despite the different labels, they share a core function. The main objective is to eliminate variables. These pumps remove the waste and safety hazards associated with manual chemical handling. They automate a critical process. Whether you call it a dosing unit or an injection system, the fundamental goal remains identical. You want to move a specific volume of fluid repeatedly and safely.

Contextual Definitions: When to Use Which Term

While the mechanics overlap, the context dictates the terminology. Understanding these nuances helps you communicate better with vendors.

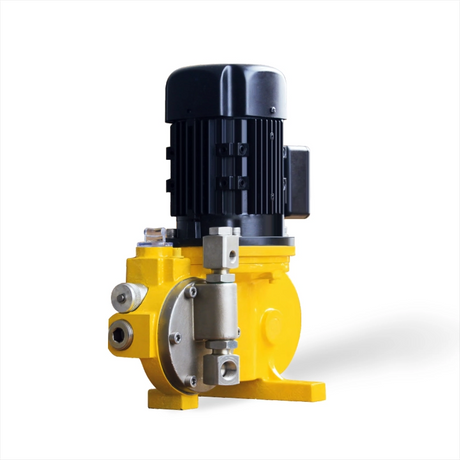

Chemical Injection Pump

We frequently see this term in heavy industry, agriculture, and oil and gas operations. The name carries implied attributes. It suggests introducing a chemical into a line or vessel. These environments usually operate under high pressure. Typical applications require robust construction. You will use these pumps for injecting corrosion inhibitors into pipelines. They also handle boiler feedwater treatment. Agricultural sectors use them for fertilizer injection, commonly known as fertigation.

Dosing Pump

Municipal water treatment plants heavily utilize this term. You also see it in wastewater management and food processing. The word focuses on the "action" of delivering a specific quantity. It emphasizes the dose required to achieve a process result. Engineers in these fields often accept slightly wider accuracy tolerances. A variance of ±5% is usually perfectly acceptable. Typical applications include dosing sodium hypochlorite for water disinfection. Facilities also use them for adding flocculants or adjusting pH levels.

Metering Pump

This is the standard terminology in pharmaceuticals and petrochemical refining. Laboratory environments also prefer this term. The name emphasizes absolute measurement. These pumps prioritize strict performance specifications. They often meet API 675 standards for precision. They provide high turndown ratios. Some digital models offer ratios up to 1000:1. They maintain a minimal steady-state error of ±1% or better. When absolute precision is non-negotiable, you specify a Metering Pump.

Evaluating the Underlying Pump Mechanisms

You must look beyond the name on the box. The internal mechanism determines the actual performance. You will generally choose between three main positive displacement designs.

Diaphragm Pumps

A flexible membrane expands and contracts inside the pump head. This action draws fluid in and pushes it out. Check valves regulate the directional flow. This design completely isolates the fluid from the driving mechanism.

• Strengths: They are excellent for high-pressure environments. They handle highly corrosive chemicals safely because they lack dynamic seals. They offer high consistency over long periods.

• Limitations: They are highly susceptible to vapor lock. Off-gassing chemicals like sodium hypochlorite can trap air in the head. Check valves can also clog easily if you pump heavy particulates.

What to watch out for: Always use a degassing valve if you pump fluids that release gas at room temperature. This simple addition prevents vapor lock failures.

Peristaltic Pumps

This mechanism uses rollers to compress a flexible tube or hose. The rollers push the fluid forward. This design requires no internal check valves. The fluid only ever touches the inside of the tubing.

• Strengths: They are unmatched for abrasive slurries. If you pump lime slurry, you need this mechanism. They handle shear-sensitive fluids perfectly. They easily process off-gassing chemicals. They are inherently self-priming and immune to vapor lock.

• Limitations: They are generally limited to lower or medium pressures. Standard tube pumps typically handle less than 4 bar. Heavy-duty hose pumps max out around 16 bar. Tubes are wear parts. They require scheduled maintenance and replacement.

Piston/Plunger Pumps

A machined plunger slides back and forth within a cylinder. This precise movement displaces a fixed volume of fluid. A motor drives the plunger through a mechanical linkage.

• Strengths: Manufacturers design these for ultra-high-pressure applications. They excel where diaphragm pumps structurally fail. They deliver massive force for deep-well injection.

• Limitations: They contain multiple moving wetted parts and dynamic seals. They are highly intolerant to abrasive particulates. Abrasives cause rapid wear and seal failure.

Mechanism Comparison Table

Engineering Selection Criteria: Specifying Beyond the Label

You must establish strict engineering criteria for your process. Do not rely on generic product names. Focus on the physical properties of your fluid and system.

1. Verify Chemical Compatibility: This represents the most critical failure point. Cross-referencing fluid properties with wetted materials is non-negotiable. For example, you cannot use stainless steel pump heads for highly corrosive acids. Using 98% sulfuric acid or sodium hypochlorite in a stainless head leads to catastrophic failure. You must specify PVDF or PTFE plastics instead.

2. Analyze Flow Rate vs. Pressure Capabilities: You must ensure the pump curve meets the maximum system pressure. Look at the pressure at the exact injection point. Do not just calculate ambient flow requirements. Pumping into a 100 PSI pipeline requires a pump rated well above 100 PSI.

3. Determine Accuracy and Turndown Ratio: Determine if your process requires a fixed dose or a dynamic response. Turndown ratio describes the operational range. A 1000:1 ratio means the pump maintains precision even at 0.1% of its maximum capacity. High turndown ratios allow the equipment to adapt to a vastly shifting operational range.

4. Assess Viscosity and Particulate Tolerance: Evaluate the physical state of your fluid. Clean, low-viscosity liquids favor diaphragm mechanisms. A heavy, particulate-laden sludge necessitates a peristaltic approach.

Common Mistakes: Engineers often forget to calculate fluid viscosity changes caused by temperature drops. A fluid that flows easily indoors might turn into a thick syrup outdoors. Always size the motor and select the mechanism based on the lowest expected ambient temperature.

Implementation Realities: From Bare Pumps to Packaged Skid Systems

Buying a single pump is rarely the end of the project. You must integrate it into a functioning system. This integration presents significant engineering challenges.

The Integration Risk

Purchasing a standalone metering device leaves you with a lot of extra work. Engineers become responsible for sourcing compatible accessories. You need check valves to prevent backflow. You must install pressure relief valves for safety. You need pulsation dampeners to smooth the flow. You also have to design the control logic. Mismatched components cause vibration, leaks, and inconsistent chemical delivery.

The Packaged Skid Advantage

Many facilities are transitioning to pre-engineered dosing skid systems (DSS). A manufacturer builds the entire fluid pathway on a single frame. They size the relief valves and dampeners perfectly to the specific pump curve. They wire the control panels in a controlled factory environment.

Outcomes of Skid Integration

This approach consolidates the chemical supply, containment, pump, and instrumentation. You receive a single, factory-tested footprint. This drastically reduces onsite installation errors. It mitigates hazardous leakage risks. You simply connect the inlet, the outlet, and the power supply. The system handles the rest seamlessly.

Conclusion

Searching for a "Chemical Injection Pump" versus a "Dosing Pump" will often yield the exact same catalog of positive displacement equipment. The names reflect historical industry habits rather than strict mechanical differences. You should shift your focus away from nomenclature entirely. Strictly evaluate fluid mechanics instead. Consider your chemical resistance needs, required injection pressure, fluid viscosity, and integration requirements. We highly advise consulting with manufacturers directly. Always provide them with a completed chemical data sheet. This ensures exact material and mechanism matching for your specific process.

FAQ

Q: Can a dosing pump be used for chemical injection?

A: Yes, they are functionally identical. The suitability depends entirely on the pressure rating and material compatibility. If a dosing unit meets your pipeline's high-pressure demands and chemical resistance needs, it functions perfectly as an injection device.

Q: What is the standard accuracy of a metering pump?

A: The industry standard is typically ±1% steady-state accuracy or better. High-end digital models driven by stepper motors offer even tighter tolerances. They provide exceptional repeatability across very broad turndown ratios.

Q: Why do diaphragm pumps fail when dosing sodium hypochlorite?

A: Failures happen because sodium hypochlorite off-gasses at room temperature. The trapped gas causes vapor lock inside the diaphragm head. Incorrect material selection also causes failures. You must use specialized degassing valve designs or switch to peristaltic alternatives.

Q: When should I upgrade to a dosing skid system?

A: You should upgrade when safety compliance mandates strict spill containment. Skids are also ideal when rapid deployment is critical to your project timeline. They guarantee component compatibility and eliminate complex onsite assembly errors.
