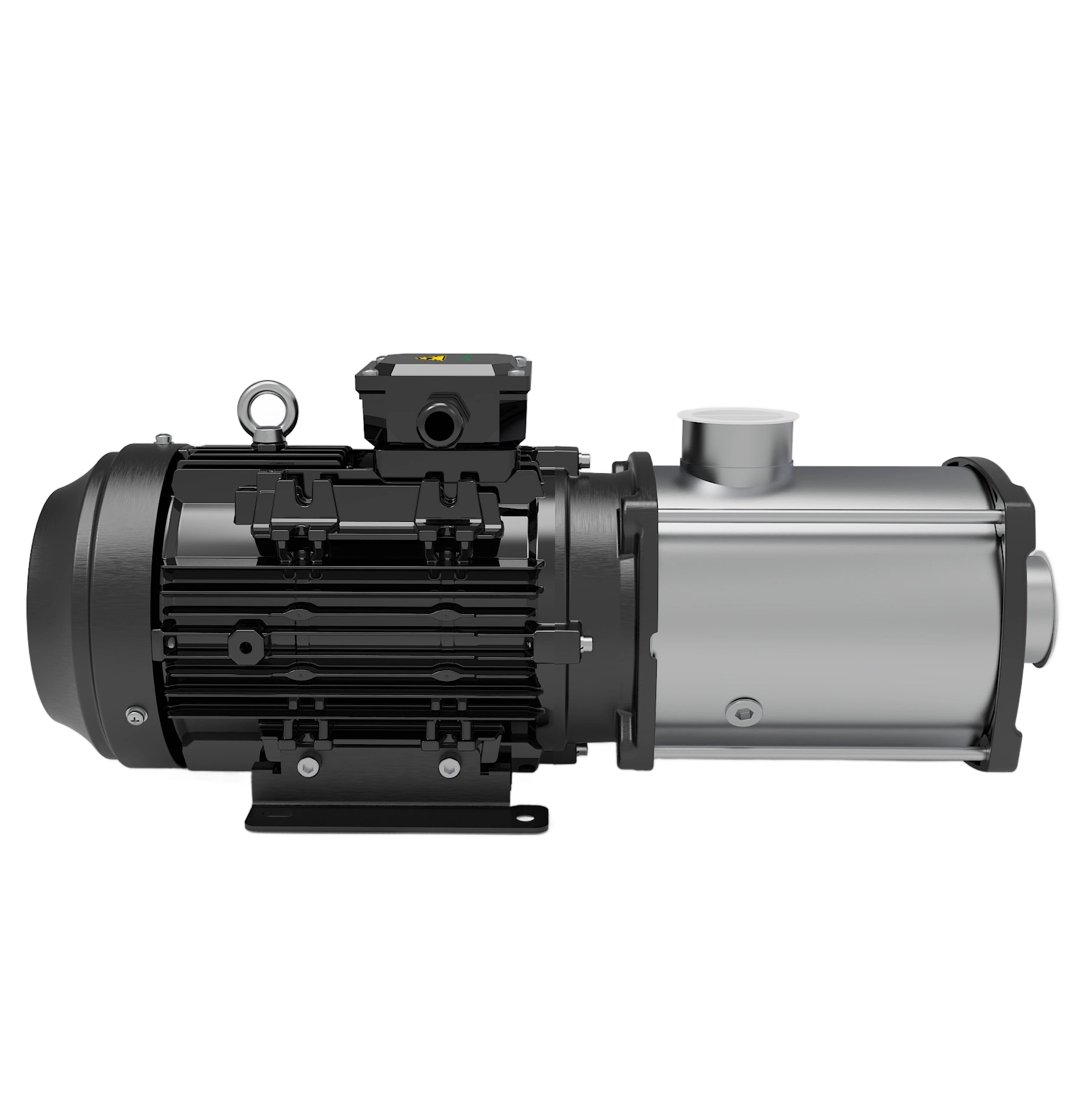

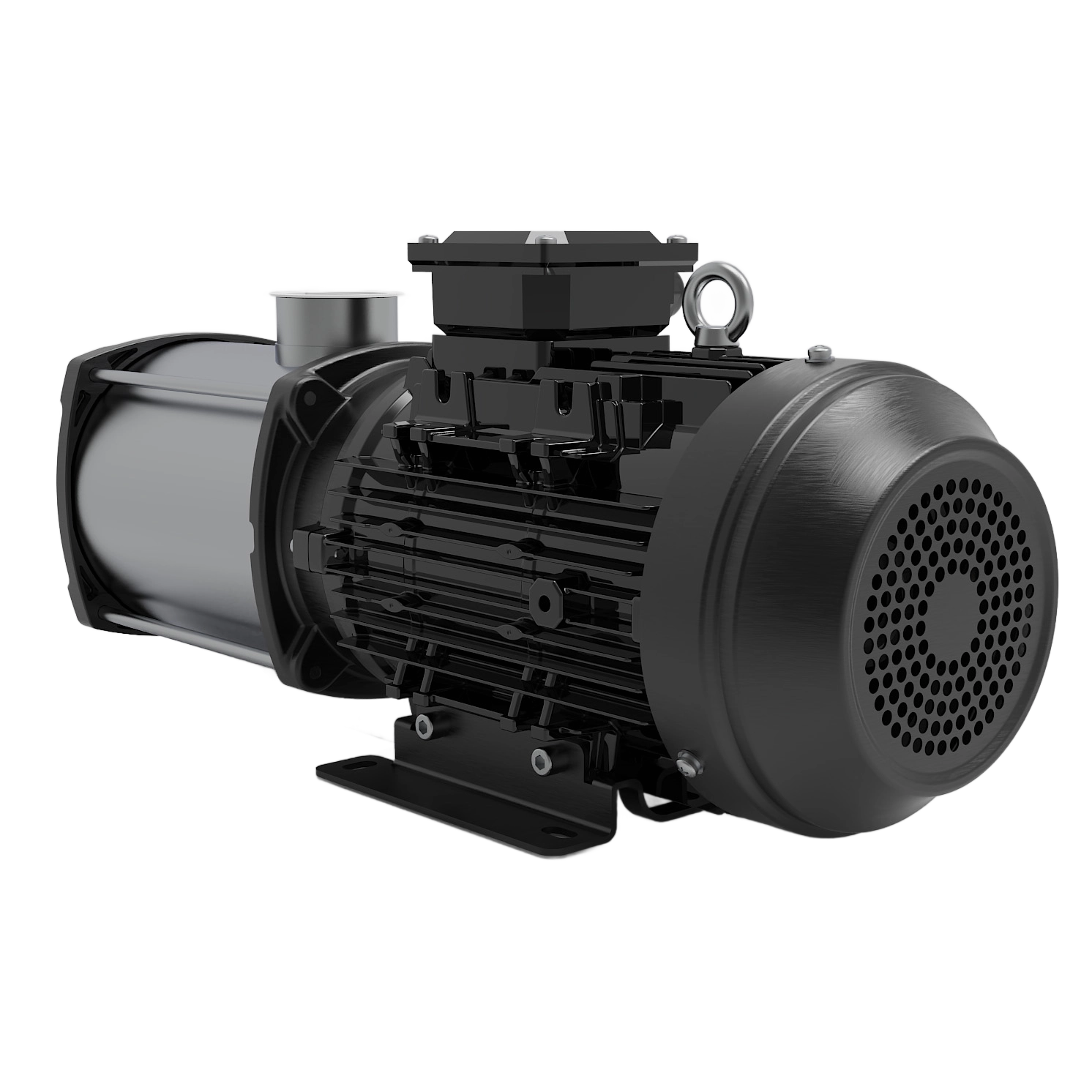

Horizontal Stainless Steel Single-Stage Centrifugal Pump(KWD)


Availability:

Quantity:

Inquire Add to Basket

Model:
KWD
Brand:
LAIKO
Code:
LAIKO-KWD

KWD is a new generation of non self suction horizontal multi-stage centrifugal pump with a brand new industrial appearance design. The pump adopts axial suction and radial discharge, and the key ﬂow components are made of stainless steel stamping and welding technology. Excellent hydraulic performance and unique structural design, characterized by high eﬃciency, low noise, low vibra-tion, stability and reliability, resistance to mild corrosion, compact structure, beautiful appearance, small size, light weight, and easy maintenance, achieve eﬃcient operation of ﬂuid transportation in various scenarios, and eﬀectively reduce the operating costs of users' pumps.Operating conditions:a liquid that is thin, clean, non corrosive, non ﬂammable, non explosive, easily vaporized, and does not contain solid particles or ﬁbers; When the density of the conveyed medium is greater than that of clean water, a high-power motor is required. Please consult our company for details.Liquid temperature range:
Room temperature type: -20 ℃~+70 ℃
Hot water type: -20 ℃~+105 ℃
Maximum operating pressure: 10 bar
Maximum altitude: 1000m
Maximum ambient temperature:+40 ℃
Medium pH value: 3~9

Horizontal Multistage Centrifugal Pump Horizontal Centrifugal Pump Horizontal Pump horizontal multistage pump horizontal water supply pump horizontal stainless steel pump horizontal multistage water supply Multistage Centrifugal Pump Multistage Pump Water Treatment

Product Description

Structure Diagram

Performance Parameters

Catalog

|Product description

KWD is a new generation of non self suction horizontal multi-stage centrifugal pump with a brand new industrial appearance design. The pump adopts axial suction and radial discharge, and the key flow components are made of stainless steel stamping and welding technology. Excellent hydraulic performance and unique structural design, characterized by high efficiency, low noise, low vibra-tion, stability and reliability, resistance to mild corrosion, compact structure, beautiful appearance, small size, light weight, and easy maintenance, achieve efficient operation of fluid transportation in various scenarios, and effictively reduce the operating costs of users' pumps.

KWD Horizontal Multistage Centrifugal Pump Promotion Manual 20251016_02

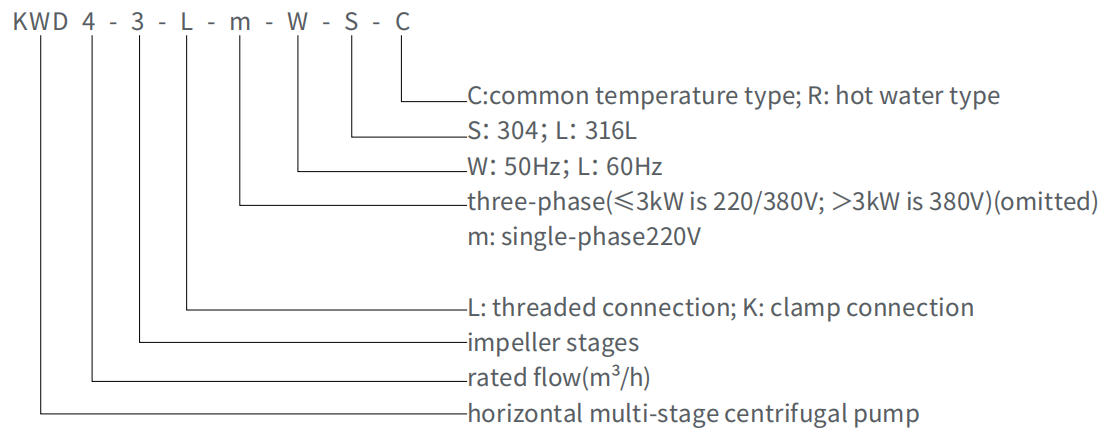

|Model Description

▍Application Scenarios

Cooling System
Air Conditioning System
Water Treatment (puriﬁcation of water)
Industrial Cleaning System
Transport, Circulation, and Lifting of Liquids Hot and Cold Water
Food and Beverage
Pharmaceutical Industry

▍Technical Parameters

Flow range:0.4-29m³/h
Head range:5-87m
Power range:0.25-7.5KW

▍Operating Conditions

Liquids: thin, clean, non-corrosive, non-ﬂammable, non-explosive, and free of solid particles and ﬁbers. When the density of the conveyed medium is greater than that of clean water, a high-power motor is required. For more details, consult us please.

Liquid temperature:

Common temperature type: -20℃~+70℃;

Hot water type: -20℃~+105℃

Altitude: up to 1000m
Maximum ambient temperature: +40℃
Maximum working pressure: 10bar
Medium pH value: 3~9

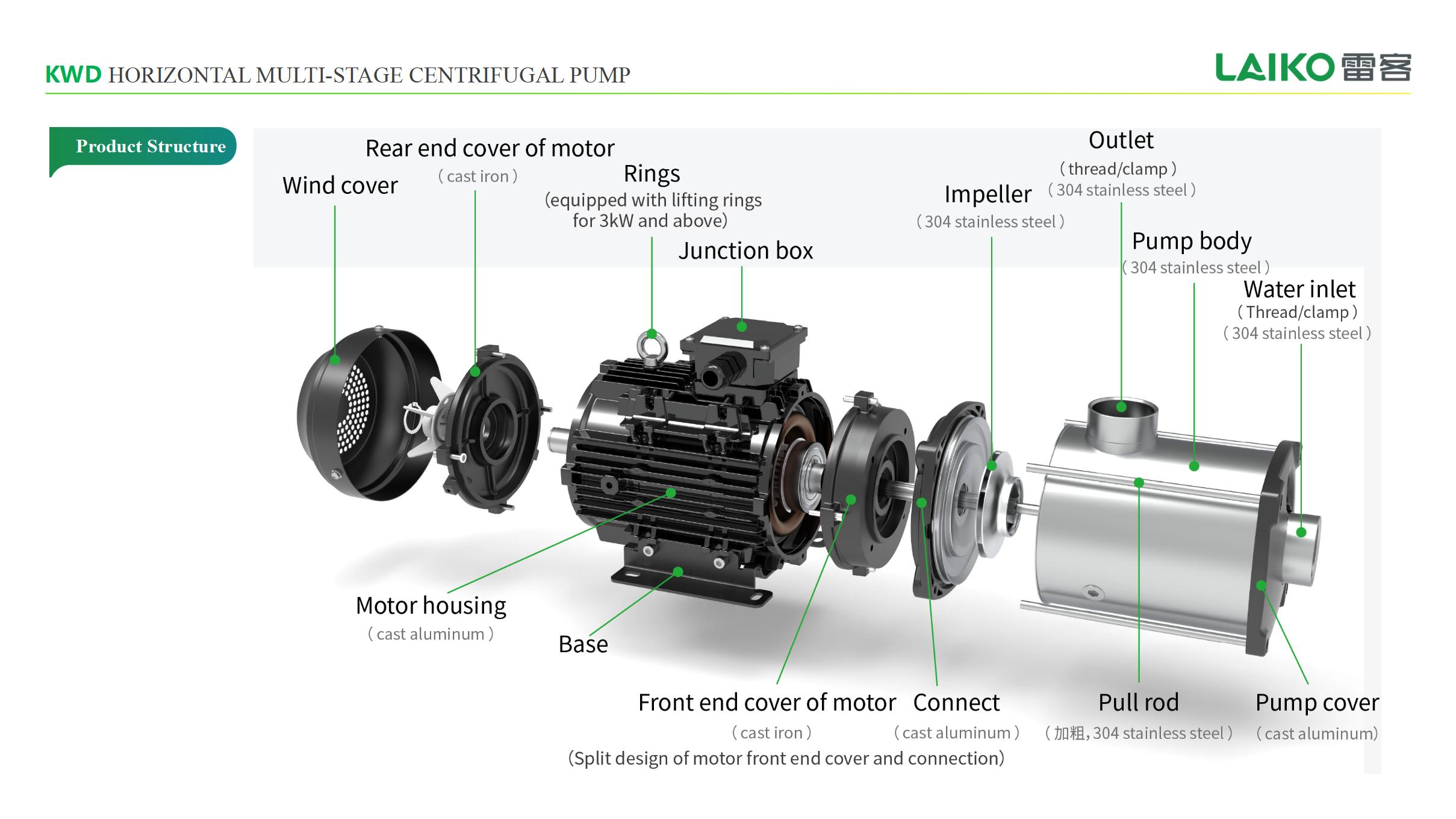

▍KWD1,2,4 Structure Diagram

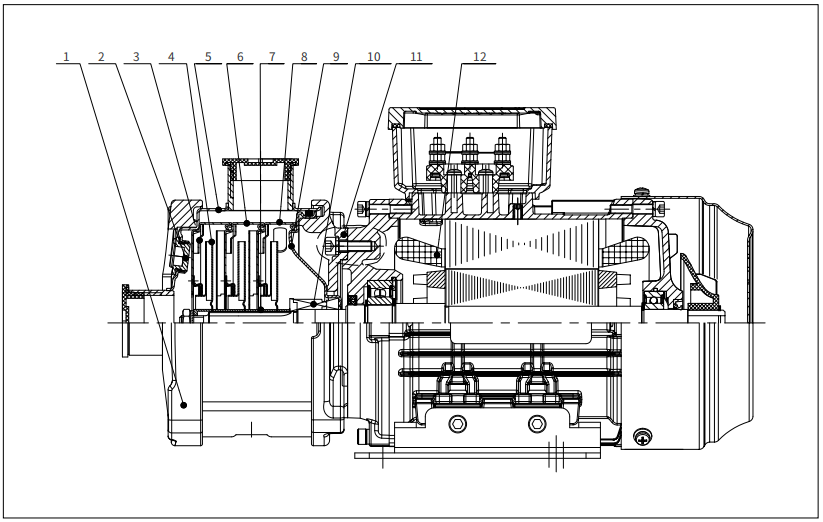

微信图片_20251111141919_463_295

▍KWD8，10，12，15，16，20，22 Structure Diagram

微信图片_20251111141919_465_295

No.	Name	Material	GB	AISI/ASTM
1	Pump cover	Die-cast aluminum	GB/T 15115-YL113	ASTM383.1
2	PulgG3/8	Stainless steel	GB/T 20878-06Cr19Ni10	AISI304
3	First diffuser	Stainless steel	GB/T 20878-06Cr19Ni10	AISI304
4	Impeller	Stainless steel	GB/T 20878-06Cr19Ni10	AISI304
5	Pump body	Stainless steel	GB/T 20878-06Cr19Ni10	AISI304
6	Medium diffuser	Stainless steel	GB/T 20878-06Cr19Ni10	AISI304
7	Spindle sleeve	Stainless steel	GB/T 20878-06Cr19Ni10	AISI304
8	Final diffuser	Stainless steel	GB/T 20878-06Cr19Ni10	AISI304
9	Mechanical seal	/	/	/
10	Connecting cover	Stainless steel	GB/T 20878-06Cr19Ni10	AISI304
11	Connect	Die-cast aluminum	GB/T 15115-YL113	ASTM383.1
12	Motor	/	/	/

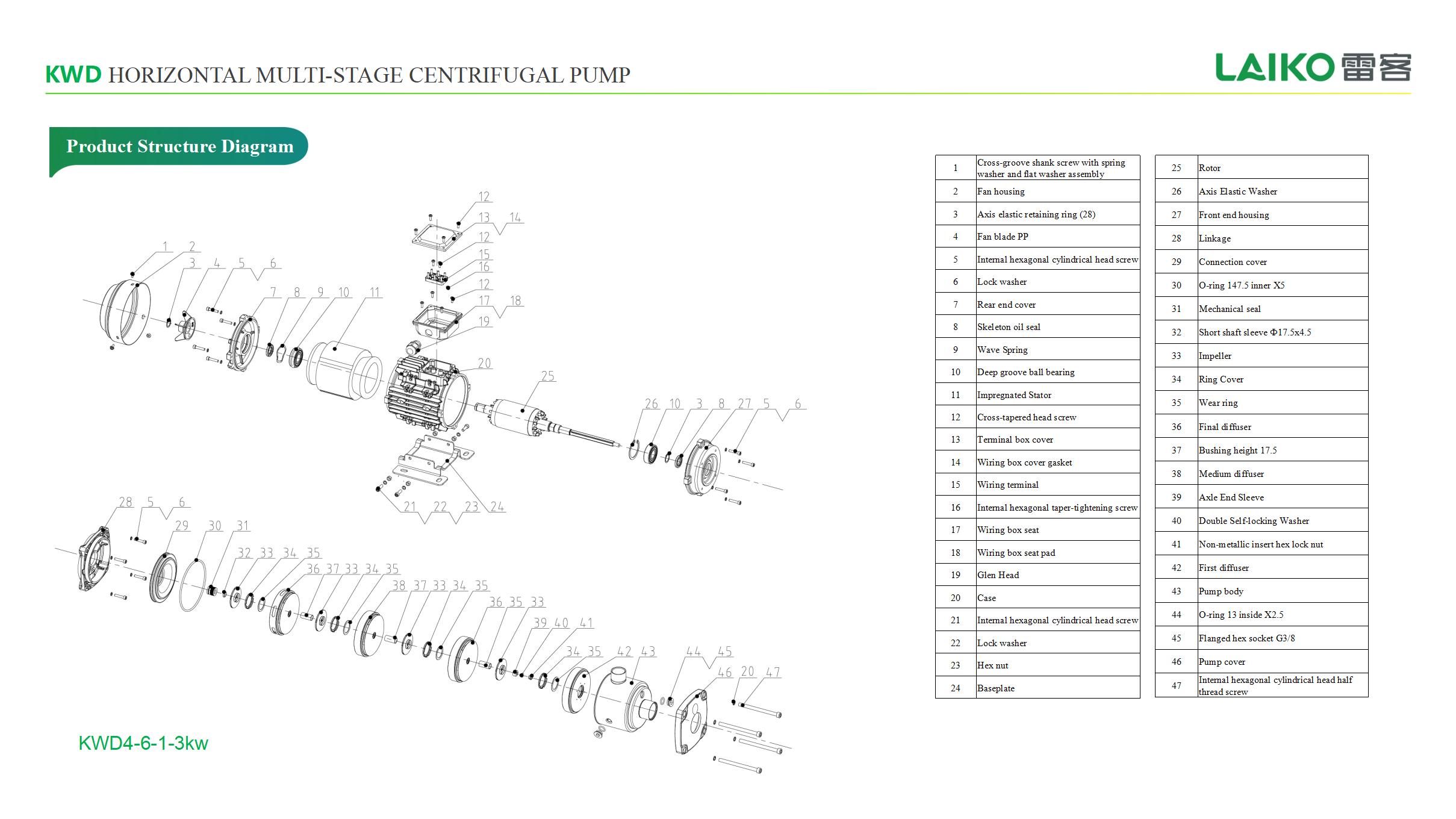

KWD Horizontal Multistage Centrifugal Pump Promotion Manual 20251016_10

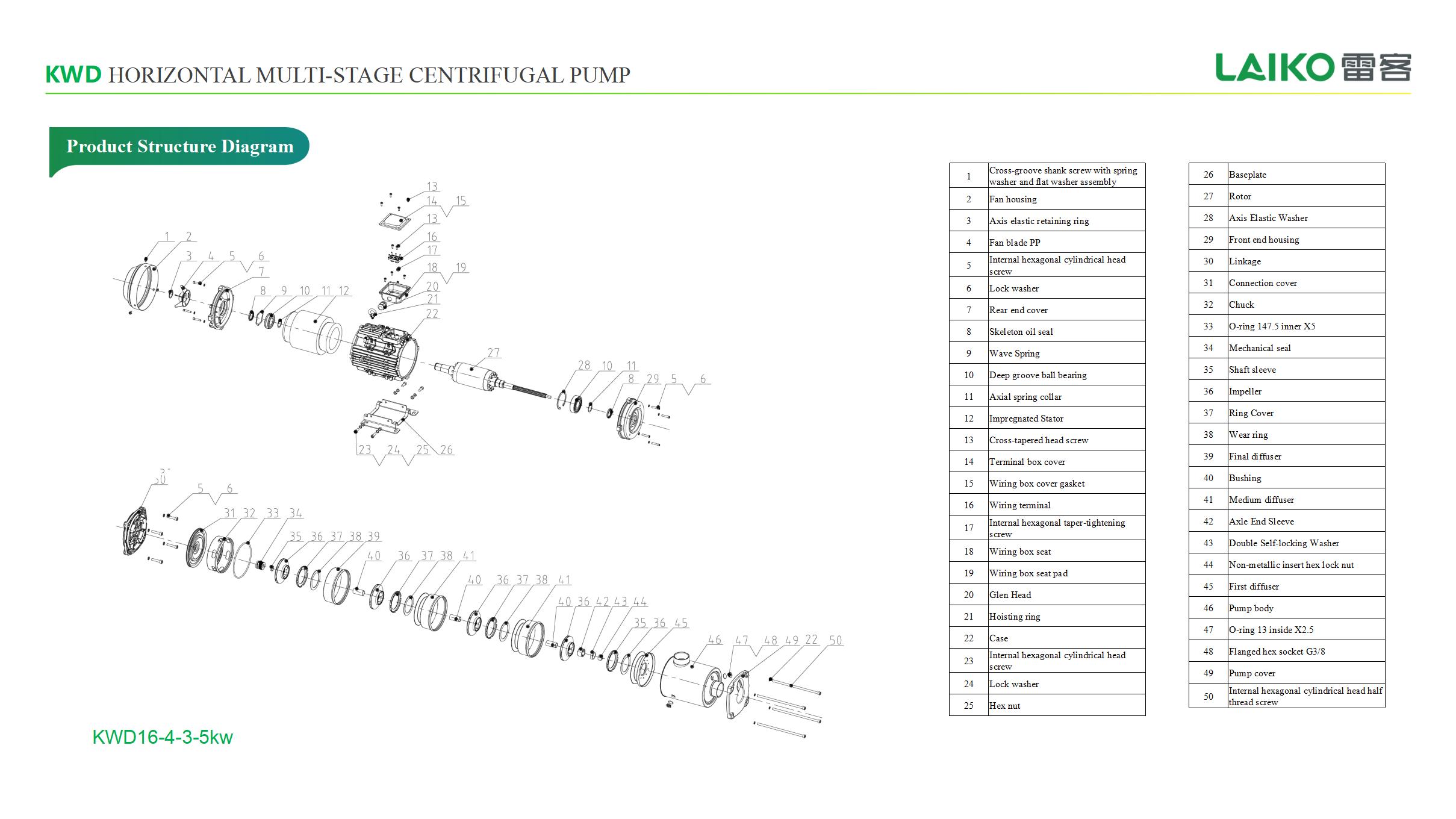

KWD Horizontal Multistage Centrifugal Pump Promotion Manual 20251016_11

KWD Horizontal Multistage Centrifugal Pump Promotion Manual 20251016_09

▍KWD1,2,4 Installation Dimension Description

Model	Power	Base	Dimension(mm)
Model	Power	Base	L1	L2	L3	L4	L5	L6	L7	L8	h	n	H	H1	H2
KWD1-2	0.25	63#	322.2	72	136	137.1	96	202	125	158	75	1	163	182.5	205.5
KWD1-3	0.25	63#	322.2	72	136	137.1	96	202	125	158	75	1	163	182.5	205.5
KWD1-4	0.37	63#	340.2	90	136	155.1	96	202	125	158	75	1	163	182.5	205.5
KWD1-5	0.45	63#	358.2	108	136	173.1	96	202	125	158	75	1	163	182.5	205.5
KWD1-6	0.45	63#	376.2	126	136	191.1	96	202	125	158	75	1	163	182.5	205.5
KWD1-7	0.55	71#	414.7	144	136	211.6	96	222.5	125	158	75	1	163	191.5	214.5
KWD2-2	0.37	63#	322.2	72	136	137.1	96	202	125	158	75	1	163	182.5	205.5
KWD2-3	0.37	63#	322.2	72	136	137.1	96	202	125	158	75	1	163	182.5	205.5
KWD2-4	0.55	71#	360.7	90	136	157.6	96	222.5	125	158	75	1	163	191.5	214.5
KWD2-5	0.55	71#	378.7	108	136	175.6	96	222.5	125	158	75	1	163	191.5	214.5
KWD2-6	0.75	71#	396.7	126	136	193.6	96	222.5	125	158	75	1	163	191.5	214.5
KWD2-7	1	71#	414.7	144	136	211.6	96	222.5	125	158	75	1	163	191.5	214.5
KWD4-2	0.37	63#	322.2	72	136	137.1	96	202	125	158	75	1 1/4	163	182.5	205.5
KWD4-3	0.55	71#	342.7	72	136	140.2	96	222	125	158	75	1 1/4	163	191.5	214.5
KWD4-4	0.75	71#	360.7	90	136	158.2	96	222	125	158	75	1 1/4	163	191.5	214.5
KWD4-5	1	71#	378.7	108	136	176.2	96	222	125	158	75	1 1/4	163	191.5	214.5
KWD4-6	1.3	80#	419.2	126	136	211.2	96	245	140	178	90	1 1/4	178	213.5	236.5
KWD4-7	1.5	80#	437.2/467.2	144	136	229.2	96	245/275	140	178	90	1 1/4	178	213.5	236.5

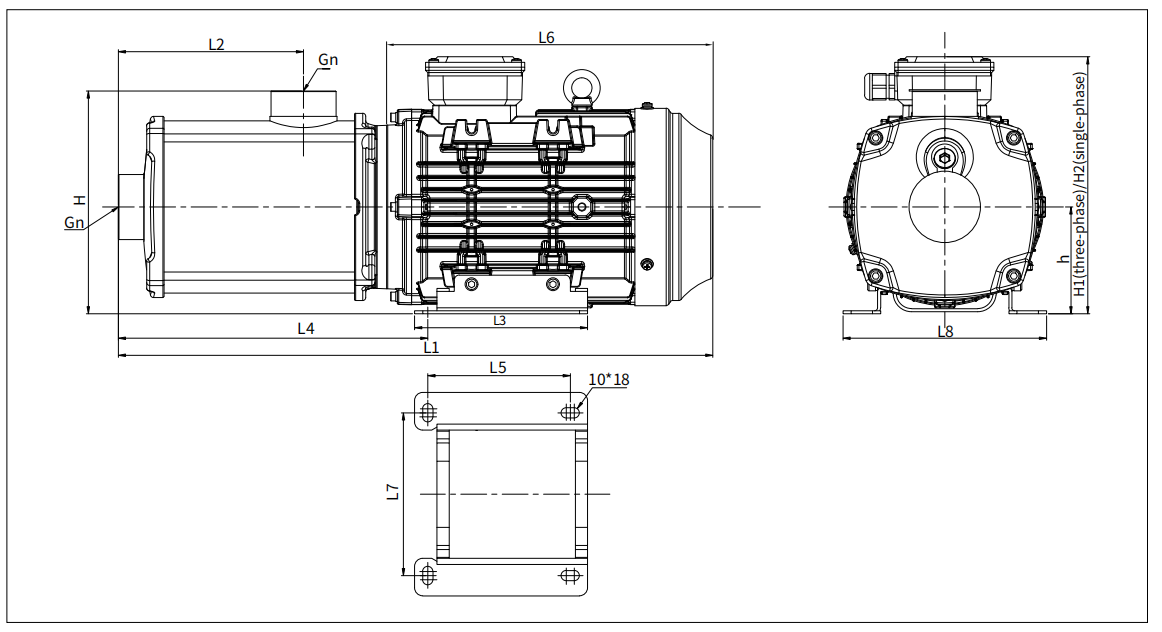

▍KWD8,8G,10,12,15,16,20,22 Installation Dimension Description

微信图片_20251111142707_470_295

Model	Power	Base	Dimension(mm)
Model	Power	Base	L1	L2	L3	L4	L5	L6	L7	L8	h	n	H	H1	H2
KWD8-2	0.75	80S#	419.6	102.5	136	211.1	96	245	140	182	100	1.5	210	223.5	246.5
KWD8-3	1	80S#	419.6	102.5	136	211.1	96	245	140	182	100	1.5	210	223.5	246.5
KWD8-4	1.5	90D#	480.1	132.5	136	246.6	96	275.5	140	182	100	1.5	210	230.5	253.5
KWD8-5	2.2	90D#/90S#	510.1/535.1	162.5	136	276.6	96	275.5/300.5	140	182	100	1.5	210	230.5	253.5
KWD8G-2	1	80#	419.6	102.5	136	211.1	96	245	140	182	100	1.5	210	223.5	246.5
KWD8G-3	1.85	90D#	450.1	102.5	136	216.6	96	275.5	140	182	100	1.5	210	230.5	253.5
KWD8G-4	2.2	90D#	480.1/505.1	132.5	136	246.6	96	275.5/300.5	140	182	100	1.5	210	230.5	253.5
KWD10-1	0.75	80#	419.6	102.5	136	211.1	96	245	140	182	100	1.5	210	223.5	246.5
KWD10-2	1.3	80#	419.6	102.5	136	211.1	96	245	140	182	100	1.5	210	223.5	246.5
KWD10-3	2.2	90D#	450.1/475.1	102.5	136	216.6	96	275.5/300.5	140	182	100	1.5	210	230.5	253.5
KWD10-4	2.7	90S#	505.1	132.5	136	246.6	96	300.5	140	182	100	1.5	210	230.5	/
KWD10-5	3	90L#	560.1	162.5	162	276.6	122	325.5	140	182	100	1.5	210	230.5	/
KWD12-1	0.75	80#	419.6	102.5	136	211.1	96	245	140	182	100	1.5	210	223.5	246.5
KWD12-2	1.3	80#	419.6	102.5	136	211.1	96	245	140	182	100	1.5	210	223.5	246.5
KWD12-3	2.2	90D#	450.1/475.1	102.5	136	216.6	96	275.5/300.5	140	182	100	1.5	210	230.5	253.5
KWD12-4	2.7	90S#	505.1	132.5	136	246.6	96	300.5	140	182	100	1.5	210	230.5	/
KWD12-5	3	90L#	560.1	162.5	162	276.6	122	325.5	140	182	100	1.5	210	230.5	/
KWD15-1	1.3	80#	419.6	102.5	136	211.1	96	245	140	182	100	2	211	223.5	246.5
KWD15-2	2.2	90D#/90S#	450.1/475.1	102.5	136	216.6	96	275.5/300.5	140	182	100	2	211	230.5	253.5
KWD15-3	3.5	100#	507.6	102.5	170	224.6	140	333	160	200	105	2	216	262	/
KWD15-4	5.5	112#	595.6	132.5	180	253.6	140	391	180	230	120	2	231	290	/
KWD15-5	7.5	112#	625.6	162.5	180	283.6	140	391	180	230	120	2	231	290	/
KWD16-1	1	80#	404.6	87.5	136	196.1	96	245	140	182	100	2	211	223.5	246.5
KWD16-2	1.6	90D#	435.1	87.5	136	201.6	96	275.5	140	182	100	2	211	230.5	253.5
KWD16-3	2.7	90S#	505.1	132.5	136	246.6	96	300.5	140	182	100	2	211	230.5	/
KWD16-4	3.5	100#	582.6	177.5	170	299.6	140	333	160	200	105	2	216	262	/
KWD16-5	4	100#	627.6	222.5	170	344.6	140	333	160	200	105	2	216	262	/
KWD20-1	1	80#	404.6	87.5	136	196.1	96	245	140	182	100	2	211	223.5	246.5
KWD20-2	2.2	90D#/90S#	435.1/460.1	87.5	136	201.6	96	275.5/300.5	140	182	100	2	211	230.5	253.5
KWD20-3	3.5	100#	537.6	132.5	170	254.6	140	333	160	200	105	2	216	262	/
KWD20-4	4	100#	582.6	177.5	170	299.6	140	333	160	200	105	2	216	262	/
KWD20-5	5.5	112#	685.6	222.5	180	343.6	140	391	180	230	120	2	231	290	/
KWD22-1	2.2	90D#/90S#	450.1/475.1	102.5	136	216.6	96	275.5/300.5	140	182	100	2	211	230.5	253.5
KWD22-2	4	100#	507.6	102.5	170	224.6	140	333	160	200	105	2	216	262	/
KWD22-3	5.5	112#	565.6	102.5	180	223.6	140	391	180	230	120	2	231	290	/
KWD22-4	7.5	112#	595.6	132.5	180	253.6	140	391	180	230	120	2	231	290	/

▍Performance Parameters(Frequency:50Hz)

Model	Power [kW]	Flow(m³/h)	0.4	0.6	0.8	1	1.2	1.4	1.6	1.8	2	2.2	2.4
KWD1-2	0.25	H(m)	19.5	19	18.5	18	17.5	17	15	14	12	12	12
KWD1-3	0.25		29	28.5	26	25	24.5	23.5	21	19	16	17	16
KWD1-4	0.37		37	36	35	33	32	30	27	26	20	22	20
KWD1-5	0.45		43	42	41	40	36	34	29	27	22	25	22
KWD1-6	0.45		51	50	49	46	44	42	36	32	26	30	26
KWD1-7	0.55		60	58	56	53	51	49	45	42	38	34	30

Model	Power[kW]	Flow(m³/h)	0.8	1.2	1.6	2	2.4	2.8	3.2	3.6	4
KWD2-2	0.37	H(m)	19.5	19	18.5	18	17	16.5	14.5	13.5	12
KWD2-3	0.37		27	26	25	24	23	22	20	17	15
KWD2-4	0.55		36	35	34	32	31	29	27	23	20
KWD2-5	0.55		44	43	42	40	38	36	33	28.5	24
KWD2-6	0.75		53	51.5	48	47	45	41	36	31.5	27
KWD2-7	1		63	61	59	56	54	51	47	41	35

Model	Power [kW]	Flow(m³/h)	1	1.6	2.2	2.8	3.4	4	4.6	5.2	5.8	6
KWD4-2	0.37	H(m)	18.5	18	17	16	15.5	15	13.5	12	8	7
KWD4-3	0.55		29	28.5	28	26	25.5	25	23	21	16	14
KWD4-4	0.75		38	37	36	33	32	30	28	26	20	18
KWD4-5	1		47	46	45	43	41	40	36	34	28	25
KWD4-6	1.3		56.5	55	54	52	51	49	45	42	36	33
KWD4-7	1.5		69	67	66	64	62	61	57	53	47	31.5

Model	Power [kW]	Flow(m³/h)	2	4	6	8	10	12	14	16
KWD8-2	0.75	H(m)	20.5	20	19.5	18	16	13	9.5	6.5
KWD8-3	1		31	30	29.5	27	24	19	15.5	11
KWD8-4	1.5		42	40.5	39.5	36	32	26	22	15.5
KWD8-5	2.2		53	51	50	45	40	32	29	20.5

Model	Power [kW]	Flow(m³/h)	2	4	6	8	10	12
KWD8G-2	1	H(m)	34	31.5	28	24.5	20	15
KWD8G-3	1.85		53.5	50	45.5	40	33	25.5
KWD8G-4	2.2		71.5	68	62	54	46	35

Model	Power [kW]	Flow(m³/h)	2	4	6	8	10	12	14
KWD10-1	0.75	H(m)	15.5	15	14.5	13.5	12	10.5	7.5
KWD10-2	1.3		31.5	31	29.5	27	25	21	16
KWD10-3	2.2		47.5	47	45.5	43	38	33	26
KWD10-4	2.7		63	62	60	56	51	44	33
KWD10-5	3		79	78	74	70	64	54	41

Model	Power[kW]	Flow(m³/h)	4	8	10	12	14	16
KWD12-1	0.75	H(m)	13.2	13	12.5	12	10	7.5
KWD12-2	1.3		26.5	26	25.5	24	20	15
KWD12-3	2.2		39.5	39	38	36	30	22
KWD12-4	2.7		53	52	50	47	39	29
KWD12-5	3		66.5	65	63	58	49	36

Model	Power [kW]	Flow(m³/h)	4	6	8	10	12	15	18	20	22
KWD15-1	1.3	H(m)	17	16.8	16.5	16	15.5	15	13	10	8
KWD15-2	2.2		35	34.5	34	33.5	32	30	26	22	18
KWD15-3	3.5		50	49	48	47.5	46	45	40	34	28
KWD15-4	5.5		70	69	68	67	64	60	52	44	36
KWD15-5	7.5		87.5	86	85	83.5	80	75	65	55	45

Model	Power [kW]	Flow(m³/h)	8	9	12	15	16	18	20	22
KWD16-1	1	H（m）	13.5	13	12	11	10.5	10	9.5	8
KWD16-2	1.6		28	26	25	23	21	20	19	17
KWD16-3	2.7		41	40	38	35	33.5	32	29	25
KWD16-4	3.5		56	55	51	47	46	43	39	35
KWD16-5	4		68	66	64	58	56.5	53	49	43

Model	Power [kW]	Flow(m³/h)	10	12	16	18	20	24	26	29
KWD20-1	1	H(m)	13	13	12	11	10.5	9	8	5
KWD20-2	2.2		28	27	25	24	22.5	19	18	12
KWD20-3	3.5		43	42	39	38	36	30	28	22
KWD20-4	4		54	53	50	48	46	40	36	31
KWD20-5	5.5		71	70	66	63	60	52	46	38

Model	Power [kW]	Flow(m³/h)	8	10	12	16	20	22	24	26	28
KWD22-1	2.2	H(m)	17.5	17	16.5	16	15	14.5	14	12	10
KWD22-2	4		34	33.5	33	32	31	30	28	25	22
KWD22-3	5.5		51	50	49.5	48	46.5	45	42	37.5	33
KWD22-4	7.5		68	67	66	64	62	60	56	50	44
