How to Select a Chemical Metering Pump for Accurate Fluid Dosing

Inaccurate chemical dosing acts as a silent drain on industrial processes. It quietly leads to wasted reagents, non-compliant wastewater discharge, and compromised process integrity across entire plants. Operators often believe matching maximum flow rates solves the problem, but this assumption falls drastically short. Selecting a Chemical Metering Pump goes beyond simple specifications. It requires carefully aligning specific fluid dynamics with the right pump mechanism and control architecture. We recognize you need a comprehensive understanding of the entire dosing ecosystem to avoid costly failures.

This guide bypasses surface-level definitions to provide a strict, engineering-focused evaluation framework. We cover crucial sizing parameters, evaluate distinct pump technologies, and break down advanced control methods. You will also learn about the critical system accessories necessary for reliable implementation on the factory floor. By applying these principles, you ensure precise, repeatable fluid control.

Key Takeaways

• Size your chemical metering pump so normal operation falls within 70% to 80% of its maximum capacity to maintain peak accuracy.

• Off-gassing chemicals (e.g., sodium hypochlorite) and highly viscous fluids require specific pump head and check-valve designs to prevent vapor lock and flow drop-off.

• Flow turndown requirements dictate the control method: altering stroke length ensures consistent injection frequency, while variable speed drives (VFDs) change frequency but maintain volume per stroke.

• A pump cannot operate accurately without a properly engineered feed system, including back pressure valves, relief valves, and calibration columns.

Defining Your Operational Baseline: Fluid Dynamics and Sizing

Sizing for the "Sweet Spot"

Engineers often make the mistake of over-sizing equipment. You must avoid sizing a pump to run at 100% capacity continuously. Operating at absolute maximum stresses internal components and degrades precision over time. Instead, target a maximum expected flow of 85% to 90% of the pump's rating. Normal daily operation should sit comfortably at the 70% to 80% sweet spot. This range gives you adequate headroom for process spikes while keeping the stroke mechanism in its most linear and accurate band.

Follow these sequential steps to size your pump correctly:

1. Identify the absolute maximum flow rate required by your chemical process.

2. Calculate 85% of this value to establish your baseline pump capacity rating.

3. Determine your normal, day-to-day operating flow rate.

4. Verify this daily flow sits strictly within the 70% to 80% capacity window.

Conversely, ensure the minimum required flow never drops below 10% of the pump’s capacity. Falling below this 10% threshold destroys linear accuracy. The internal check valves fail to seat properly at extremely low fluid volumes.

Viscosity and Specific Gravity Constraints

Fluid thickness drastically changes how a pump moves liquid. Standard metering pumps typically handle fluid viscosities up to 1,500 centipoise (cPs). However, highly viscous liquids introduce serious mechanical challenges. For thick fluids, standard check-valve balls can float inside the valve body. This floating behavior delays seating, which reduces or entirely stops the chemical output.

How do we solve this? You must implement spring-loaded check valves to force the balls down quickly against the thick fluid. Alternatively, look into specific tubular diaphragm pump heads. These specialized designs handle massive viscosities up to 20,000 cPs. They also successfully move slurries containing up to 10% solid concentrations without clogging the fluid path.

Managing Off-Gassing and Vapor Lock

Certain chemicals actively fight against positive displacement mechanisms. Oxidizers like hydrogen peroxide and sodium hypochlorite constantly release gas bubbles. These trapped bubbles compress during the discharge stroke. This compression absorbs the mechanical force and creates vapor lock inside standard positive displacement pumps. The pump keeps running, but no liquid actually moves into the pipeline.

Your evaluation criteria must prioritize gas-handling capabilities. Look for pumps equipped with automatic degassing valves. Smart diaphragm designs also provide a robust solution. They monitor flow disruptions electronically. When they detect a vapor lock condition, they automatically accelerate their stroke speeds to purge the trapped gas rapidly and restore normal suction.

Evaluating Chemical Metering Pump Technologies

Diaphragm Pumps (Mechanical vs. Hydraulically Balanced)

Best for: Corrosive chemicals, slurries, and environments requiring zero leakage.

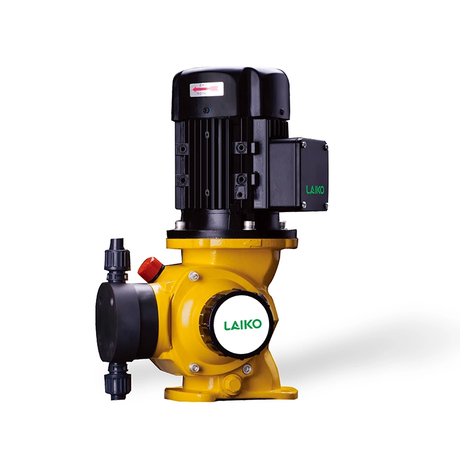

Diaphragm pumps dominate the chemical dosing landscape because they completely isolate the process fluid. When looking through an evaluation lens, we divide them into two primary categories. Mechanical diaphragms offer a highly practical solution for standard pressure applications. They directly connect the flexible diaphragm to the motor stroke mechanism. This makes them highly reliable for municipal water treatment.

Hydraulically balanced diaphragm pumps step up to handle much tougher conditions. They use compressed hydraulic fluid to push the diaphragm uniformly across its entire surface. You require hydraulically balanced models for high-pressure, high-precision applications. Process engineers frequently specify these exact models to meet strict API 675 standards in oil, gas, and heavy chemical processing.

Peristaltic Pumps

Best for: Shear-sensitive fluids, heavy off-gassing chemicals, and applications requiring the fluid to remain entirely isolated from mechanical pump components.

Peristaltic units utilize rotating rollers to squeeze a flexible tube, pushing the liquid forward. They never expose internal metal parts or complex valves to the fluid. This simple mechanism makes them perfect for harsh chemicals or fragile biological fluids. They easily push trapped gases right through the discharge line without vapor locking.

However, they carry a notable risk factor: tubing degradation. Chemical compatibility with the exact hose material dictates system reliability. Common materials include PTFE, Marprene, and natural rubber. Tube fatigue remains inevitable due to constant mechanical squeezing. You must enforce strict predictive maintenance schedules. Replace the tubes proactively before they rupture to prevent catastrophic process leaks.

Piston and Plunger Pumps

Best for: Extremely high-pressure applications (e.g., boiler feed systems) and specific viscous fluids.

Plunger pumps deliver raw, unmatched power. They push solid plungers directly into the fluid chamber to displace liquid. You will find them highly effective for pushing chemicals into high-pressure pipelines where diaphragms might fail. They effortlessly overcome immense back pressures.

You must understand their implementation reality before selecting them. They require packing seals around the plunger to prevent fluid escape. These seals inherently subject themselves to friction and wear. They experience minor weeping by design to stay properly lubricated. This weeping makes them entirely unsuitable for highly hazardous, toxic, or volatile chemicals unless you utilize specialized closed-loop recovery setups to capture the leaks.

Selecting the Right Control Method for Precision Turndown

Stroke Length vs. Motor Speed Adjustment

Control methodology defines your process flexibility. Your turndown ratio depends entirely on how you manipulate the pump's mechanics. We primarily adjust either stroke length or motor speed to hit target flow rates.

Micrometer Stroke Adjustment: This physical adjustment modifies the actual volume of fluid displaced per single stroke. It typically allows a reliable 10:1 turndown ratio. The motor frequency remains continuous and uninterrupted. This continuous frequency is ideal for process lines requiring steady, uninterrupted chemical blending without gaps in the fluid stream.

Variable Frequency Drives (VFDs): VFDs modify the electrical motor speed itself. This changes the frequency of injections while the stroke volume remains perfectly constant. You face a specific risk here. Running a VFD at too low a speed can create dangerous "dead zones." The main process stream might flow past the injection point between slow pump strokes, causing uneven chemical distribution.

Composite Control: You can combine a VFD (e.g., 5:1 turndown) with stroke length adjustment (10:1). This powerful combination yields an effective 50:1 turndown ratio. It provides massive flexibility for highly variable flow processes, allowing precise low-end control without causing dead zones.

Integration with Process Control (SCADA / PLC)

Modern industrial plants rarely run pumps in isolation. You must evaluate options for seamless analog or digital control integration. Many systems use standard 4-20 mA signals tied directly to inline pH or flow sensors. If the pH strays, the signal adjusts the pump speed proportionally.

Alternatively, digital pulse control allows precise batching operations based on water meter feedback. For ultra-precise closed-loop systems, consider pairing the pump with a micro-motion Coriolis flow meter. This meter provides highly accurate, real-time mass flow feedback. The local PLC reads this data and applies dynamic speed adjustments to the Chemical Metering Pump instantly, ensuring absolute dosing perfection.

Designing the Chemical Feed System (Critical Accessories)

Managing Suction and Flooded Feeds

Metering pumps function exceptionally well at pushing fluids out, but they pull poorly. They struggle to create strong suction lift. You should limit suction lift to a maximum of 4 feet (1.2 meters). Pushing beyond this limit invites inconsistent dosing and loss of prime.

Industry best practice demands a flooded suction design. Place the supply tank physically above the pump. This flooded setup should provide a maximum of 2.1 meters of head pressure. It keeps the pump primed automatically. It also prevents destructive cavitation inside the fluid end, which occurs when a pump struggles to draw thick liquids.

Back Pressure and Pressure Relief

Accessories dictate system survival. You must install specific external valves to control fluid line pressure effectively.

Back Pressure Valves: These are essential to prevent fluid siphoning from the tank into a low-pressure process line. You must ensure a minimum 50 psi (3.4 bar) differential exists between the suction and discharge sides. This resistance gives the pump's internal check valves something to push against so they seat properly. Never rely on partially closed isolation valves to generate back pressure. They offer no dynamic control.

Pressure Relief Valves: You must install these externally on the discharge line. Do this even if the pump features an internal relief mechanism. Set the relief valve to 10% or 50 psi above the maximum expected operating pressure, whichever number is greater. This protects the piping network from catastrophic rupture if a downstream valve accidentally closes.

Calibration Columns and Pulsation Dampeners

You cannot verify mathematical accuracy without proper physical measurement tools. Install a clear calibration column directly on the suction side piping.

• Size this column to hold exactly 1 to 2 minutes of flow at maximum capacity.

• Run a physical draw-down test weekly.

• Compare the visual fluid drop in the column to the pump's digital setpoint to verify exact injection rates.

Additionally, reciprocating pumps create a violently pulsing flow profile. Pulsation dampeners are absolutely required here. They utilize a pressurized air bladder to absorb the energy spikes. They smooth the fluid profile into a steady stream and protect fragile piping joints from damaging water hammer.

Vendor Evaluation Framework

Material Compatibility Verification

Never guess on construction materials. You must cross-reference all wet-end materials against your specific chemical concentration. This includes the pump head, diaphragms, O-rings, and check valves. Operating temperature drastically alters chemical aggressiveness. A plastic composite that happily survives 20°C might soften or melt entirely at 50°C. Always request a chemical compatibility chart from the vendor.

Maintenance Downtime

Evaluate the structural complexity of the wet end. Compare the actual frequency and physical labor required for repairs. Rebuilding a complex hydraulically balanced diaphragm pump head takes significant technician time. It often requires careful recalibration. Replacing a simple peristaltic tube takes only minutes but happens much more frequently. Choose the maintenance rhythm that best fits your facility's shift schedule and technician availability.

Compliance and Documentation

Industrial applications demand strict regulatory adherence. Ensure the manufacturer can provide all relevant certifications upfront before purchasing. You might need API 675 testing documentation for oil and gas projects. You might need FDA compliance certificates for food-grade environments. In explosive atmospheres, ATEX certification is non-negotiable. Furthermore, verify they maintain reliable, domestic lead times for critical spare parts to prevent extended plant outages.

Conclusion

Selecting a chemical metering pump requires viewing the unit as the heart of a broader fluid control system. You cannot isolate the pump from its surrounding pipework, sensors, and valves. Final shortlisting should rely on accurately mapping your fluid's specific viscosity and off-gassing behavior to the correct positive displacement mechanism. You must select a control method that actually meets your daily flow turndown requirements without creating process dead zones.

Strictly enforce the use of proper system accessories like pulsation dampeners, calibration columns, and relief valves. These components protect the primary asset. Consulting with a fluid control engineer to validate the entire dosing skid design minimizes operational risk. It ultimately ensures long-term process compliance, environmental safety, and consistent product quality.

FAQ

Q: What is the difference between a dosing pump and a metering pump?

A: Engineers often use the terms interchangeably in the field. However, "metering" typically implies higher precision capabilities regulated by external variables. A metering pump usually integrates with control systems (like SCADA) to dynamically adjust flow based on live sensor feedback. A dosing pump often runs at a fixed, manual rate to deliver a set volume over a specific time.

Q: Why is my metering pump losing prime with sodium hypochlorite?

A: Sodium hypochlorite is a strong oxidizer that constantly off-gasses. As gas bubbles accumulate inside the pump head, they compress during the discharge stroke instead of pushing the liquid out. This creates a vapor lock. You must install automatic degassing valves to continuously vent this trapped gas and maintain the pump's prime.

Q: Can I run a chemical metering pump completely dry?

A: It depends heavily on the pump's mechanical design. Diaphragm and peristaltic pumps generally tolerate dry running much better because they lack internal metal-on-metal friction. However, tightly toleranced gear or plunger pumps will quickly overheat, score their internal metal surfaces, and fail catastrophically if run dry for even short periods.

Q: How often should metering pump check valves be cleaned or replaced?

A: Baseline preventative maintenance depends entirely on fluid cleanliness. For clean, non-abrasive chemicals, inspect and clean valves annually. If you pump slurries or fluids with high particulate loads, you should schedule visual inspections every three to six months. Replace O-rings and valve balls immediately if you notice physical pitting or loss of spherical shape.
