How to Choose a Water Booster Pump for Buildings and Water Supply Systems

Selecting a Water Booster Pump is no longer just about picking raw horsepower. It now stands as a critical system engineering decision for any modern infrastructure project. Undersized pumps consistently lead to frustrating user complaints, poor plumbing performance, and destructive system cavitation. On the other hand, oversized units create massive operational risks. They invite catastrophic pipe failures, strict code compliance violations, and severely bloated energy consumption. Balancing these hydraulic extremes dictates whether your facility operates smoothly or faces constant, expensive downtime.

This guide gives facility managers, MEP engineers, and system integrators an evidence-based, vendor-neutral evaluation framework. We will show you exactly how to evaluate, accurately size, and specify the right pressure boosting setup. You will learn everything necessary to protect your commercial, residential, or municipal applications effectively and reliably.

Key Takeaways

• Sizing demands precision: Required pressure is calculated by subtracting incoming municipal/tank pressure from the target pressure; ignoring incoming pressure fluctuations can lead to dangerous pressure compounding.

• Compliance is non-negotiable: The International Plumbing Code (IPC) mandates a maximum static water pressure of 80 PSI; systems must utilize Pressure Reducing Valves (PRVs) if this threshold is exceeded.

• Direct mains boosting may be illegal: Many jurisdictions prohibit pulling directly from municipal lines without a break tank due to negative pressure risks.

• Redundancy protects revenue: Commercial and high-rise applications require Duplex or Triplex systems with lead-lag rotation to ensure uninterrupted supply and extended equipment lifespan.

1. Calculate Exact Sizing Requirements (Flow and Pressure)

You must establish precise quantitative metrics before browsing product catalogs. Guessing flow or pressure requirements inevitably leads to system failures. Proper sizing requires breaking down your facility’s specific hydraulic demands.

Determining Peak Flow Rate (GPM)

First, you need to calculate your peak flow rate in Gallons Per Minute (GPM). Start by auditing all plumbing fixtures inside the building. Each fixture draws a specific volume of water. You must calculate what happens when multiple fixtures operate simultaneously.

We must differentiate between continuous demand and cyclical peak demand. Large-scale agricultural irrigation represents continuous demand. The flow remains constant for hours. Conversely, morning hotel showers represent cyclical peak demand. The system experiences a massive, brief spike in water usage.

Use the following reference table to estimate baseline fixture demands:

Calculating the Pressure Gap (PSI)

After establishing flow, you must determine your required pressure boost. Plumbers measure this in Pounds per Square Inch (PSI). Target system pressure for most commercial buildings sits between 60 and 70 PSI.

Use this basic formula to find your gap:

1. Identify your target system pressure.

2. Measure your minimum incoming source pressure.

3. Subtract incoming pressure from target pressure.

4. The result equals your required pump boost.

You must account for dangerous pressure compounding. Incoming municipal pressure often fluctuates. Suppose your city main normally provides 30 PSI. You configure your pump to blindly add 70 PSI. If the city pressure suddenly surges to 60 PSI, your system hits 130 PSI. This severe pressure spike will blow out pipes and damage fixtures.

Factoring in Upstream System Pressure Losses

Water loses pressure as it travels through pipes and components. We call this friction loss. You must calculate these drops before sizing the pump. Old galvanized pipes create more drag than modern PEX tubing. Fittings, elbows, and valves also rob the system of pressure.

Pay special attention to upstream hardware. Backflow preventers safeguard municipal supplies from contamination. However, they routinely consume 10 to 12 PSI. Commercial water meters easily extract another 10 PSI. You must add these hidden losses back into your total required boost calculation.

2. Match Pump Architecture to Building and Application Type

You must align the physical configuration of your system with your facility’s operational scale. Different buildings carry different risk tolerances. A minor pressure drop in a home is annoying. A complete water failure in a hospital is catastrophic.

Simplex Systems (Single-Family & Light Commercial)

Simplex configurations use a single pump unit. They suit single-family homes and light commercial spaces perfectly. You should specify them only where brief water interruptions represent a minor inconvenience.

When selecting a simplex unit, prioritize plug-and-play packaged systems. These units ship pre-assembled and pre-wired. Pay close attention to their noise profiles. Water-cooled motors run significantly quieter than traditional air-cooled motors. They fit perfectly inside residential basements or small retail utility closets.

Duplex and Triplex Systems (Multifamily, Hotels, Hospitals)

Mission-critical facilities demand continuous water delivery. Hospitals, hotels, and large apartment blocks require N+1 redundancy. Duplex systems use two pumps. Triplex systems use three. If one motor fails, the backup immediately takes over.

Evaluate the controller carefully. It must feature intelligent lead-lag operation. This technology prevents one pump from doing all the work. It operates on a 24-hour rotating schedule. Yesterday's backup pump becomes today's primary pump. This equalizes mechanical wear and tear across all motors.

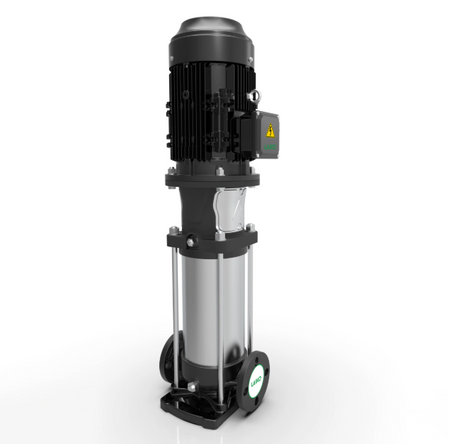

Vertical Multistage Systems & Pressure Zones (High-Rises)

High-rise buildings pose unique hydraulic challenges. Water loses roughly 0.433 PSI for every vertical foot it climbs. Buildings over 75 feet tall require massive elevation head pressure. Vertical multistage systems solve this. They stack multiple impellers inside a single casing to generate immense pressure.

However, pushing extreme pressure from the basement creates a new hazard. The lower floors will experience dangerously high pressure. To solve this, MEP engineers implement architectural pressure zones. They install mid-level relay pumps halfway up the building. This prevents lower-level pipes from exploding under extreme static pressure.

Penthouse suites often suffer from top-floor pressure drops. As a niche solution, you can specify independent, ultra-quiet localized pumps solely for these premium units. This avoids over-pressurizing the entire upper zone just to satisfy one shower.

3. Evaluate Core Technologies: VFDs vs. Constant Speed

Choosing the right control mechanism dictates your system's energy efficiency. It also determines how long internal components will survive. You generally choose between Variable Frequency Drives and traditional constant speed setups.

Variable Frequency Drives (VFDs) / Constant Pressure Systems

A Variable Frequency Drive (VFD) modernizes how we move water. It uses a Programmable Logic Controller (PLC) to modulate motor speed continuously. It monitors real-time demand. If someone opens a single bathroom faucet, the motor spins at perhaps 10% capacity. During morning rush hours, it speeds up to 100% capacity.

The energy return on investment is remarkable. A VFD reduces lifecycle energy consumption by 30 to 50 percent. Furthermore, variable acceleration eliminates water hammer. The pipes no longer bang violently when valves close.

However, you face one major caveat. You must pair a VFD with a properly sized pressure tank. Without a tank, the pump struggles during micro-draws, like a leaking toilet flapper. It rapidly turns on and off. We call this destructive cycle "hunting". A pressure tank provides a small buffer of stored water to prevent this rapid cycling.

Constant Speed / Single-Stage Pumps

Constant speed systems operate purely in binary mode. They run at full speed or they shut off completely. They fit predictable applications perfectly. We use them for filling secondary roof holding tanks or powering industrial washdown hoses.

They cost much less upfront. They lack complex electronics, making them easier to troubleshoot. However, they endure much higher mechanical stress over time. The sudden violent starts wear down bearings and impellers faster.

Essential Fail-Safes

Regardless of your technology choice, demand essential fail-safes. Ensure your selected Water Booster Pump includes robust dry-run protection. If the municipal supply suddenly stops, dry-run protection shuts the motor down immediately. Running a pump without water melts the internal seals in minutes.

Additionally, verify self-priming capabilities. If your system draws from an underground tank or a negative-head source, standard centrifugal pumps will fail. Self-priming models evacuate air from the suction line automatically.

4. Navigate Plumbing Codes, Compliance, and Installation Risks

Hydraulic math means nothing if your installation violates local laws. Physical realities and legal frameworks often derail poorly planned plumbing projects.

The IPC 80 PSI Limitation

The International Plumbing Code (IPC) enforces strict safety limitations. Under IPC Section 604.8, static water pressure cannot exceed 80 PSI inside a building. Pressure above this threshold destroys appliance hoses and damages fixture cartridges.

You must design around this absolute limit. If combined pressure spikes are possible, install Pressure Reducing Valves (PRVs). Place these PRVs immediately downstream of the pump discharge. They act as mechanical governors to ensure you never violate code.

Direct Mains vs. Break Tanks

Always verify local municipal codes before specifying a direct connection. Many jurisdictions strictly prohibit pumping directly from a city main. Drawing heavy flow directly from the grid creates a localized vacuum.

This negative pressure poses a massive public health risk. It pulls non-potable groundwater into municipal pipes through tiny underground leaks. To prevent this, municipalities require an intermediate break tank. The city fills the tank at atmospheric pressure. Your pump then draws water safely from this local storage tank.

Component Sequencing (The Water Softener Rule)

Poor component sequencing ruins expensive equipment. Water softeners represent a classic engineering trap. A large softener introduces a massive pressure drop into the system. During peak flow, softeners can strip away up to 25 PSI.

Furthermore, softeners possess strict structural pressure limits. You must always specify water softeners upstream of the booster pump. Never place them downstream. If the pump pushes high-pressure water directly into the softener, it will blow the unit's internal resin seals.

Tank Sourcing Considerations

If your design utilizes a break tank, you must manage sediment. Debris naturally settles at the bottom of large storage vessels. Mandate the use of a floating strainer on the intake line. This clever device floats near the surface. It pulls the cleanest water from the top, avoiding the sludge buildup at the bottom. This simple addition doubles the lifespan of your pump impellers.

5. Shortlisting Logic and Final Procurement Criteria

Your final procurement decision requires a rigorous framework. Do not let flashy marketing materials distract you from practical maintenance realities.

Maintenance Footprint

Avoid buying systems requiring custom engineering for basic repairs. Plumbers should not need proprietary tools to swap a failing motor. Prioritize manifolds featuring universal sizing.

Insist on quick-disconnect fittings. Proper unions and isolation valves allow maintenance teams to swap a single motor rapidly. You can isolate the broken unit entirely. This allows the backup pump to keep the building running without draining the entire system.

IoT and Predictive Maintenance

Modern commercial properties rely on data. Prioritize smart controllers equipped with Human-Machine Interfaces (HMI). Look for native Building Management System (BMS) integration via Modbus or BACnet protocols.

Remote app connectivity offers massive advantages. Modern sensors diagnose cavitation, alignment faults, or bearing wear early. You can dispatch a technician before a catastrophic mechanical failure floods a mechanical room.

Material Certification

Material safety remains a legal requirement. Any pump handling domestic drinking water must carry explicit NSF 61 certification. This verifies the internal components will not leach lead or toxic chemicals into the water supply.

Always specify 304 or 316 stainless steel for impellers and pump housings. Municipalities treat water using aggressive chloramine compounds. Standard cast iron rusts quickly under these conditions. Stainless steel resists chloramine degradation brilliantly, ensuring decades of clean water delivery.

Conclusion

Choosing the correct equipment requires balancing hydraulic physics, building topology, and strict code compliance. You cannot rely on guesswork when sizing these critical systems. Undersized units frustrate users, while oversized units destroy infrastructure.

To move forward successfully, take these immediate action steps:

• Calculate your exact GPM peak demand by auditing all building fixtures thoroughly.

• Verify your minimum incoming municipal pressure baseline using a calibrated gauge during peak morning hours.

• Consult with a qualified MEP engineer to review local break tank laws and IPC compliance.

• Finalize a system configuration utilizing proper lead-lag redundancy to protect both the building's infrastructure and its occupants.

FAQ

Q: Can I install a water booster pump directly onto the city water line?

A: Usually, no. Many local plumbing codes prohibit direct municipal connections. Pumping directly from a city line creates a localized vacuum. This negative pressure pulls contaminated groundwater into public pipes. Most jurisdictions legally require an intermediate atmospheric break tank to separate your system from the municipal grid.

Q: What is the difference between a simplex and a duplex water booster pump?

A: A simplex system uses a single pump. It offers no redundancy, making it suitable only for homes or light retail. A duplex system utilizes two pumps equipped with lead-lag controllers. It provides critical backup capabilities and handles unexpected peak demands. Duplex configurations remain the absolute standard for commercial buildings.

Q: Why is my variable-speed booster pump constantly turning on and off?

A: This rapid cycling is called "hunting." It typically occurs during micro-draws, like a dripping faucet. Hunting usually indicates a missing expansion tank, a ruptured internal tank bladder, or improperly calibrated low-flow shutdown settings on your controller. A properly sized pressure tank absorbs these tiny flow demands smoothly.
