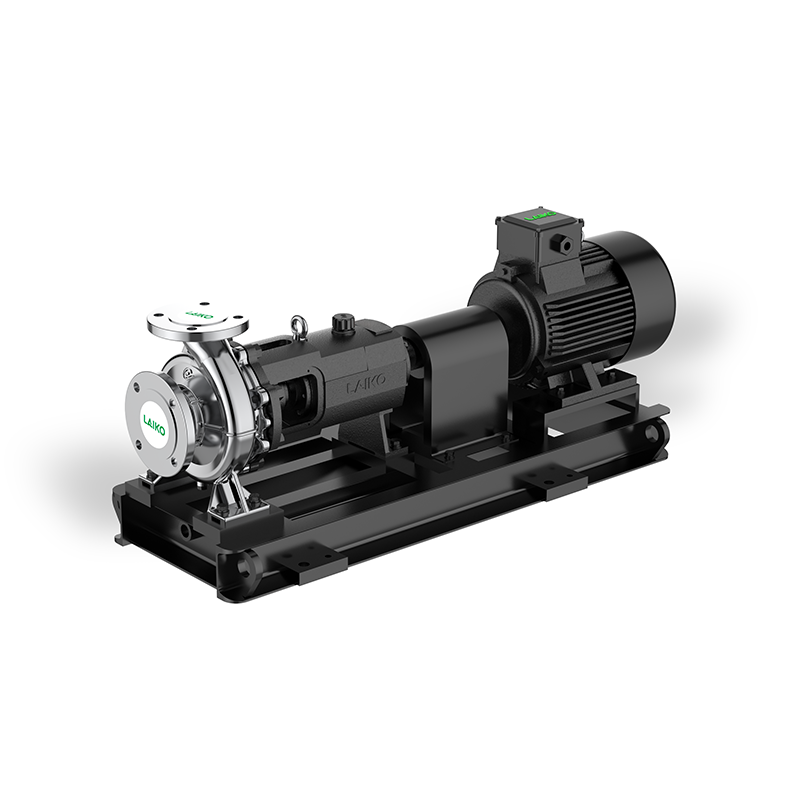

How Liquid Viscosity Changes Chemical Centrifugal Pump Sizing

Relying on standard water-based performance curves for chemical transfer is a recipe for system failure. When pumping viscous chemicals like resins, heavy slurries, or polymers, standard pump data often proves misleading. These fluids behave differently than water, creating internal friction that fundamentally alters fluid dynamics. If you ignore these changes, you risk choosing an undersized motor, inviting premature mechanical wear, and creating significant process bottlenecks. Viscosity is a critical variable that forces us to rethink traditional design assumptions. Sizing a pump for these applications requires a deliberate derating of performance expectations and strategic motor upgrades to handle increased torque requirements. In this guide, we provide a transparent, engineering-backed framework for applying necessary viscosity corrections. You will learn how to assess implementation risks, evaluate when a centrifugal design remains viable, and determine when alternative technologies should take over your process.

Key Takeaways

• High fluid viscosity drastically reduces head, flow, and efficiency while spiking Brake Horsepower (BHP) requirements.

• Standard industry practice dictates using Hydraulic Institute (HI) correction factors to translate water curves to viscous performance.

• Standard centrifugal pumps typically lose viability past 300–500 cSt (centistokes), where positive displacement alternatives become necessary.

• Proper sizing requires analyzing Net Positive Suction Head (NPSH) drops and implementing temperature controls to stabilize fluid thickness.

The Operational Impact of Viscosity on Fluid Transfer

Viscosity acts as a persistent friction penalty within your piping and pump internals. As a fluid thickens, it resists the shear force generated by the impeller rotation. This resistance transforms kinetic energy into heat rather than useful flow. If you fail to account for this energy loss, you will quickly face performance deficits. Financial losses often manifest as both capital and operational issues. Selecting an undersized motor leads to rapid overheating and potential motor burnout, which is a major capital expense. Furthermore, trying to force a thick fluid through a system designed for thin liquids causes excessive energy draw. This creates a permanent drain on your operational budget through inflated electricity bills and frequent maintenance cycles. System degradation happens rapidly when fluids are too thick for the design. Slower fluid movement inside the pump volute increases internal recirculation. This trapped energy raises the temperature of the fluid and the pump casing. Consequently, you will likely see accelerated wear on your mechanical seals and bearings, leading to leaks or complete equipment failure. You must evaluate these risks early in the procurement phase to avoid costly downtime.

How Viscosity Alters Centrifugal Pump Performance Curves

When you move from water to a viscous liquid, the performance curve of your pump shifts dramatically. These changes are not linear, meaning you cannot simply guess the impact. Engineering standards require precise analysis to maintain process integrity.

Flow Rate and Head Reduction

Increased fluid resistance prevents the medium from exiting the impeller vanes efficiently. This phenomenon causes the pump's Best Efficiency Point (BEP) to shift to the left. Essentially, the pump struggles to move the desired volume, and the Total Dynamic Head (TDH) drops sharply compared to water performance.

Efficiency and Power Demands

Internal fluid drag causes a significant decline in overall hydraulic efficiency. Even as flow and head decrease, your motor must work harder to shear the viscous fluid. This results in a surge in Brake Horsepower (BHP). You might find that a pump capable of handling a specific flow with water requires a much larger motor when tasked with a viscous chemical.

The following table illustrates the typical performance shifts when moving from water to a viscous medium:

Sizing Adjustments: Applying Viscosity Correction Factors

Engineers often rely on OEM pump curves developed for clear water at 68°F (20°C). This baseline is a dangerous starting point for chemical procurement. If you treat a heavy polymer as water, the pump will underperform immediately upon startup.

The Hydraulic Institute (HI) Methodology

The industry standard for handling this is the Hydraulic Institute (HI) methodology. It provides established charts to determine specific correction factors for capacity ($C_Q$), head ($C_H$), and efficiency ($C_E$). You apply these factors to translate your target viscous requirements into "equivalent water performance."

The Calculation Workflow

Follow this structured approach to ensure your system is properly specified:

1. Identify the target viscous flow rate and head requirements for your specific chemical.

2. Use HI correction charts to calculate your specific $C_Q$, $C_H$, and $C_E$ values.

3. Apply these factors to find the equivalent water performance metrics.

4. Select a chemical centrifugal pump based on these higher, adjusted water metrics.

5. Calculate the required viscous BHP to ensure the motor can handle the actual load without overheating.

Centrifugal Pumps vs. Positive Displacement: Decision Thresholds

Knowing when to switch technologies is as important as sizing the pump itself. Centrifugal designs have physical limits that, once exceeded, make them inefficient compared to other options.

The Evaluation Matrix

You can use a general viscosity threshold to guide your selection process.

• 0 to 100 cSt: Standard centrifugal pumps handle this range easily. Minor motor sizing adjustments are usually sufficient.

• 100 to 500 cSt: A heavy-duty chemical process pump can operate here. You will need open impellers and oversized motors, though efficiency will drop noticeably.

• 500+ cSt: This is the hard threshold for most centrifugal designs. ROI drops sharply here. At this level, you should shift to Positive Displacement (PD) pumps like gear, lobe, or progressive cavity designs.

Implementation Risks for a Chemical Pipeline Centrifugal Pump

Integrating a chemical pipeline centrifugal pump requires careful attention to the suction side. Viscous fluids create high friction losses, which can starve the pump of fluid.

NPSH Margin Erosion

Thick fluids drastically increase suction line friction. This lowers the Net Positive Suction Head Available (NPSHa). If the NPSHa drops below the required NPSH of the pump (NPSHr), cavitation will occur. Cavitation destroys impellers and seals quickly. Always calculate your suction pipe diameter with care; upsizing the piping is often the most cost-effective way to reduce friction losses.

Temperature Volatility

Viscosity is highly temperature-dependent. A fluid that flows smoothly at 120°F might turn into a thick paste at 60°F. If your process experiences temperature swings, your pump must be sized for the worst-case scenario—the lowest expected operating temperature. To mitigate these risks:

• Incorporate heat tracing or steam jackets to keep the fluid at a consistent, pumpable temperature.

• Use non-overloading motors that can handle the high torque of a cold-start condition.

• Consider Variable Frequency Drives (VFDs) to adjust motor speed as process temperatures change.

Conclusion

Viscosity is a primary dictate of pump selection, not a secondary variable. You must prioritize accurate data gathering, specifically kinematic viscosity at the lowest expected temperature. By translating your viscous requirements into water-equivalent curves and vetting motor capacity, you prevent future failures. Next steps for your project:

• Collect precise viscosity data from your chemical supplier.

• Consult with an application engineer to run the HI correction factor calculations.

• Compare the results against your system's suction capability and motor limitations.

• Finalize your equipment specifications only after verifying these corrections.

FAQ

Q: What is the maximum viscosity a chemical centrifugal pump can handle?

A: While some designs can function up to 700 cSt, they do so with severe efficiency losses. In practice, the economic and operational limit is generally between 300 and 500 cSt. Beyond this, positive displacement pumps are usually the better choice.

Q: Why does motor size need to increase if flow and head are decreasing?

A: Even though the pump delivers less liquid, the mechanical work required to shear the thick, viscous fluid through the impeller increases. This extra effort consumes significantly more power, necessitating a larger motor to prevent overheating.

Q: How does temperature fluctuation affect pump selection?

A: Temperature has an exponential effect on viscosity. As the fluid cools, it thickens, requiring more torque. You must size your pump for the highest potential viscosity—which occurs at your process's lowest expected temperature—to ensure reliability.

Q: Does viscosity affect the Net Positive Suction Head (NPSH)?

A: Yes. Thicker fluids cause greater friction losses within the suction piping. This friction reduces the total energy available at the pump inlet (NPSHa). If the available head falls below the pump's requirement, cavitation will occur, which leads to rapid mechanical damage.
