Immersion Coolant Pumps: Choosing the Right Depth for Your Tank

In CNC machining and industrial fluid management, selecting an immersion coolant pump is rarely a simple plug-and-play decision. The physical dimensions of the pump relative to your tank dictate the entire system's reliability. You simply cannot afford to treat this mechanical alignment as an afterthought.

Incorrect pump depth introduces critical failure points directly into your production line. Running a pump too shallow invites aeration and cavitation, destroying internal components rapidly. Conversely, running it too deep guarantees sludge ingestion and premature impeller death. Either scenario halts production without warning.

This guide breaks down the engineering criteria for determining the exact immersion depth required for your specific tank. We help procurement and engineering teams evaluate operational parameters effectively. Ultimately, you will learn how to shortlist the right pumping solution to ensure uninterrupted production cycles.

Key Takeaways

• Clearance is critical: Immersion pumps require a strictly calculated minimum clearance from the tank floor to avoid drawing in settled swarf and chips.

• Vortexing destroys impellers: Insufficient submersion depth leads to air entrainment (vortexing), resulting in cavitation and catastrophic pump failure.

• Application dictates pump type: High-pressure through-spindle applications require an immersion multistage centrifugal pump, which inherently demands deeper tank profiles than standard flood coolant pumps.

• Dynamic fluid levels: Sizing must account for coolant loss (evaporation and chip carry-off) to ensure the pump remains submerged during continuous operation.

The Business Impact of Incorrect Coolant Pump Depth

Submerging a pump into a tank looks visually simple. However, fluid dynamics dictate a harsh mechanical reality underneath the surface. When you miscalculate pump depth, you trigger a chain reaction of mechanical failures. These failures compromise machine uptime and ruin expensive cutting tools.

The "Too Shallow" Risk: Aeration and Cavitation

When the fluid level drops below the minimum submergence threshold, the pump begins to draw in air from the surface. This phenomenon creates a visible vortex. It looks exactly like a small tornado forming above the suction inlet. Air mixes into the fluid. This causes severe foaming inside the tank.

Foaming immediately degrades the lubricity of the coolant. More importantly, introducing air leads to a severe loss of coolant pressure at the cutting zone. Inside the pump casing, a much more destructive process occurs. Localized pressure drops below the fluid's vapor pressure. Vapor bubbles form and collapse violently against the metal surfaces. We call this cavitation. The collapsing bubbles generate microscopic shockwaves. These shockwaves physically pit the metal. They destroy the pump's internal impellers in a matter of weeks.

The "Too Deep" Risk: Swarf Ingestion

Positioning the suction inlet too close to the tank floor introduces a completely different set of hazards. A pump mounted millimeters from the bottom acts like an industrial vacuum. It actively pulls in settled sludge, metal chips, and microscopic particulate matter.

Manufacturers design coolants to carry away heat and metal fines. Once these fines settle at the bottom of the tank, they must stay there until routine cleaning. Ingesting this abrasive sludge rapidly degrades mechanical seals. Silicon carbide faces scratch and fail. The particulate matter then travels up the delivery pipes. It clogs coolant lines and blocks the tiny orifices on CNC nozzles.

Downtime and Tooling Costs

Erratic coolant flow stems directly from improper pump depth. When a nozzle clogs due to sludge ingestion, the cutting tool loses its cooling stream. When a pump cavitates due to shallow mounting, the pressure fluctuates wildly.

In both scenarios, the cutting tool experiences thermal shock. The cutting edge heats up instantly, then cools rapidly when erratic fluid hits it again. This shatters expensive carbide inserts. You scrap the machined parts. You suffer unscheduled machine downtime. Proper depth calculation prevents this entire sequence of failures.

Immersion Multistage Centrifugal Pump vs. Standard Centrifugal Pumps

You cannot determine the correct tank depth without first understanding the physical architecture of the pump. Different cooling applications require radically different pump designs. The internal geometry of the pump dictates its required immersion depth.

Standard Centrifugal Pumps

Most basic machining operations rely on high-volume, low-pressure coolant delivery. We call this flood cooling. Engineers specify standard centrifugal pumps for these exact scenarios. They feature a single impeller housed at the bottom of the unit.

Because they only use one impeller, they feature shorter immersion lengths. This compact design makes them highly forgiving in shallow tanks. They handle fluid level fluctuations reasonably well. Even if the tank utilizes aggressive internal baffling, a standard single-stage unit will likely maintain a stable prime. They are robust, simple, and perfectly suited for moving large volumes of fluid without generating extreme pressure.

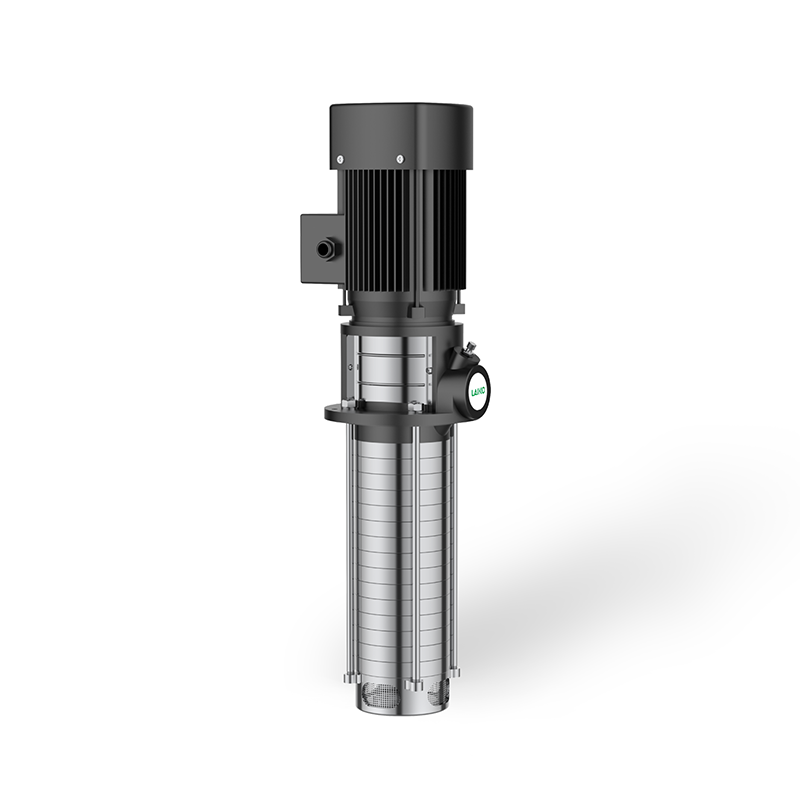

Immersion Multistage Centrifugal Pump Design

Modern CNC centers utilize high-pressure systems. Through-spindle coolant delivery often demands pressures exceeding 1000 PSI. A single impeller cannot generate this kind of force. Therefore, manufacturers engineer an immersion multistage centrifugal pump for the task.

These units stack multiple impellers inside a series of diffusers. Each stage boosts the fluid pressure progressively. Because they stack these components vertically, the physical pump body becomes significantly longer. This architecture fundamentally requires deeper coolant tanks. Furthermore, they demand stricter minimum fluid level maintenance. If the fluid level drops below the uppermost active impeller stage, the pump loses efficiency and risks catastrophic dry-running damage.

The Evaluation Lens

Do not over-specify your equipment. Many facility managers mistakenly believe bigger is always better. Upgrading to a multistage pump for a standard flood application introduces unnecessary headaches. You will complicate your tank depth requirements. You will also increase energy expenditures without gaining any operational benefit. Match the hydraulic design directly to the machining requirement.

Pump Configuration Comparison

The Decision Framework: Sizing Pump Depth to Your Coolant Tank

Selecting the correct immersion depth requires precise measurements and a clear understanding of your filtration layout. You cannot guess these dimensions. Follow this standardized engineering framework to establish the perfect operational depth for your specific setup.

1. Measure Maximum Tank Depth and Baffling: Start by measuring the physical depth of the clean coolant compartment. Do not measure the dirty side of the tank. Pay close attention to internal baffles. Baffles force fluid to travel a winding path, allowing chips to settle out. However, they restrict fluid return rates. This restriction often causes localized drops in the fluid level near the pump. The dynamic fluid level while running will always be lower than the static level.

2. Calculate Floor Clearance: Standard engineering practice demands a strict clearance gap. You must leave a minimum clearance of 1 to 2 inches (25mm–50mm) between the pump suction inlet and the tank floor. Your primary filtration dictates this exact number. If you rely on inefficient chip conveyors, use the 2-inch maximum to avoid sludge. If you utilize high-efficiency magnetic separators and fine media filters, you can safely run closer to the 1-inch minimum.

3. Determine Minimum Submergence Level: You must consult the manufacturer's pump curve. Locate the Minimum Required Submergence value. This measurement prevents surface vortexing. It ensures the system maintains sufficient Net Positive Suction Head (NPSH). If the atmospheric pressure pushing down on the fluid cannot overcome the suction demands of the pump, cavitation begins instantly.

You can verify your physical constraints using a simple calculation. Use this formula before finalizing your equipment selection:

Max Immersion Length = Total Tank Depth - Minimum Floor Clearance

If your chosen pump exceeds this calculated maximum length, you cannot use it. You must either modify the tank geometry or select a different pumping unit.

Implementation Realities: Managing Fluid Fluctuation and Sludge

Engineering formulas provide a perfect baseline. However, factory floors rarely operate in perfect conditions. You must account for the dynamic nature of machining environments. Implementing the right pump depth is only the first step. You must manage the environmental variables that threaten your carefully calculated fluid levels.

The Reality of Coolant Loss

Coolant tanks are never static environments. Fluid escapes the system continuously through several distinct pathways.

• Evaporation: High-speed machining generates massive amounts of heat. Water-soluble coolants evaporate rapidly at the cutting zone.

• Drag-out: Fluid coats every single chip and finished part. Conveyors carry wet chips into the recycling bin. This drag-out removes gallons of fluid every hour.

• Atomization: High-pressure delivery atomizes the fluid into a fine mist. Even with mist collectors, some volume invariably escapes the enclosure.

Combined, these factors can drop tank levels by several inches per shift. A pump perfectly sized at 8:00 AM might begin drawing air by 3:00 PM if nobody monitors the system.

System Safeguards

Relying on operators to manually check levels introduces massive human error risks. Operators get busy. They forget to top off the tanks. You must engineer safeguards into the system.

• Incorporate dedicated float switches to monitor minimum levels.

• Wire these switches to trigger machine alarms before the fluid drops below the pump's minimum submergence depth.

• Install Automatic Top-Off (ATO) systems. ATO units automatically blend concentrate and water, maintaining a steady liquid level. This ensures maximum pump efficiency around the clock.

Assumption Check

Never assume proper pump depth replaces the need for preventative tank maintenance. Even perfectly sized pumps fail if you neglect the reservoir. Sludge builds up incrementally. Over several months, a 2-inch floor clearance can shrink to zero as heavy particulate accumulates. If the sludge level reaches the suction inlet, the pump will ingest it. You must establish and strictly enforce a periodic tank cleaning schedule.

Shortlisting Logic: Selecting Your Next Immersion Coolant Pump

Once you calculate your required depth and clearance parameters, you can begin reviewing manufacturer catalogs. However, depth is not the only mechanical variable. You must evaluate several critical integration points to ensure the unit survives in your facility.

Match Flange to Tank Geometry

Ensure the pump’s mounting flange perfectly aligns with your existing tank lid. The mating surfaces must sit completely flat. Modifying tank lids for non-standard flanges often introduces structural weaknesses. If the flange does not seat properly, the pump will vibrate. Vibration travels down the extended shaft. It destroys motor bearings and induces structural fatigue in the tank lid itself. Always specify a drop-in replacement flange whenever possible.

Material Compatibility Verification

Evaluate the pump's construction materials against your specific fluid chemistry. Coolants vary wildly in their chemical makeup. You might run synthetic, semi-synthetic, or straight oil-based coolants. Synthetics often run at highly alkaline pH levels. High alkalinity can strip paint from standard cast iron housings and induce rapid corrosion.

If you run aggressive fluids or deionized water, you must specify stainless steel wetted components. Engineered plastics also offer excellent chemical resistance for specific low-pressure applications. Never assume a standard cast iron unit will survive every chemical environment.

Regulatory and Electrical Compliance

Verify that your shortlisted models meet necessary industrial standards. Check the motor frame specifications. Ensure they comply with NEMA or IEC standards depending on your geographic location. Look for CE or UL certifications on the motor nameplate. This guarantees seamless integration into your facility's electrical infrastructure. It also ensures your maintenance teams can source replacement motors easily in the future.

Next Steps for Procurement

Do not issue a purchase order based on a brochure photograph. Require your suppliers to provide comprehensive dimensional drawings. Demand the official pump performance curves. Cross-reference the physical dimensions against your tank measurements. Verify the NPSH requirements against your dynamic fluid levels. Only approve the purchase when the engineering data aligns perfectly with your physical reality.

Conclusion

Selecting the correct immersion coolant pump is an exercise in exact spatial and fluid dynamics. You cannot guess the dimensions or rely on visual approximations. The reliability of your entire machining center depends on this single component operating flawlessly.

By calculating the precise floor clearance, you prevent catastrophic sludge ingestion. By accounting for dynamic fluid loss, you stop aeration and cavitation before they start. Understanding the physical requirements of multistage versus standard centrifugal designs allows you to match the hardware to the application perfectly. Engineering teams who follow this framework eliminate cavitation and extend both tooling and pump life.

Audit your current tank dimensions today. Measure your dynamic fluid loss rates across a standard shift. Gather this empirical data before you ever open a manufacturer's catalog to review new pumping solutions.

FAQ

Q: What is the minimum submergence level for an immersion coolant pump?

A: It varies by manufacturer and flow rate, but typically ranges from 2 to 4 inches above the suction inlet to prevent air-drawing vortexes. Always consult the specific pump's engineering data sheet.

Q: Can I use a longer pump in a shallow tank if I mount it at an angle?

A: No. Immersion coolant pumps are precision-engineered to be mounted perfectly vertical. Angled mounting destroys the motor bearings and mechanical seals due to improper load distribution.

Q: How do I know if my coolant pump is too close to the tank floor?

A: Symptoms include frequent clogging of machine coolant nozzles, accelerated wear on the pump impeller, and a heavy accumulation of metal fines inside the pump housing during maintenance inspections.

Q: What is the difference in depth requirements between AC and DC coolant pumps?

A: For industrial CNC machining, 3-phase AC motors are the industry standard due to reliability and constant torque. DC pumps are typically reserved for specialized variable-speed applications, but motor type does not change the physical hydraulic depth requirements of the wet end.
